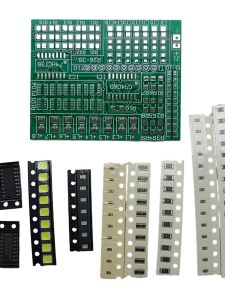

Aideepen | DIY Electronic Kit 1801 SMT SMD Component Soldering Project Practice Suite FM Radio Transmitter Board Module Welding Learning

Features:Fully surface-mount design; soldering quality can be visually assessed by the lighting of the 15 LEDs;Innovative circuit design with high entertainment value and a comprehensive range of components;Features a double-sided tin-plated fiberglass PCB, suitable for introductory soldering practice, hands-on training, exams, and competitions;Includes a Word version of the user manual for easy customization;Board Materials: International standard board material; all pads are tin-plated; made of high-strength, fire-resistant, and impact-resistant material; can be repeatedly disassembled and reassembled; the PCB is well-designed and uses common surface-mount components.Product Specifications:Circuit Operating Voltage: 5VBoard Dimensions: 59 × 48 mmBoard Thickness: 1.6 mmCircuit Overview:This circuit is an automatically controlled LED circuit composed of the digital integrated circuits CD4060 and 74HC138. The CD4060 internally consists of an oscillator and a binary counter with 10 output levels. The oscillator can be externally connected to a crystal oscillator or an RC circuit; this control circuit is configured as an RC oscillator, formed by the series connection of R1–R10 and C1–C10. the total resistance of the series-connected resistors is the sum of their individual values, and the total capacitance of the series-connected capacitors of equal value is equal to the capacitance of a single capacitor divided by the number of capacitors, i.e., 10⁴/10.Once the CD4060 oscillator circuit begins oscillating, the counter counts the oscillation signals, Each binary bit of the counter toggles continuously as counting proceeds, thereby outputting square-wave signals with frequencies ranging from high to low on pins Q4–Q14. Pins Q4–Q10 each drive a light-emitting diode (LED) L9–L15, causing these seven LEDs to flash at different frequencies. Pins Q12–Q14 are connected to the inputs of the 74HC138 integrated circuit, a 3-to-8 decoder that allows only one bit to be at a low level at a time at its outputs. As the input data changes, pins Y0–Y7 sequentially go low, creating a running light effect on LEDs L1–L8. After the CD4060 counter overflows, it resets to 0 and begins counting again. This enables automatic control of the 15 LEDs.The 15-Channel Color Light Controller SMD Soldering Practice Kit offers the following 10 key features, making it an excellent choice for training, exams, and competitions:Fun—Once the circuit is assembled and powered with 4–6 V, it functions as a 7-channel binary counter light display plus an 8-channel running light display, offering a novel and entertaining experience.Training Value—With a total of 76 components (excluding pin headers) and 240 solder joints, it’s ideal for practicing soldering speed.Comprehensiveness—The circuit includes 8 categories of commonly used components, helping users become familiar with a wider range of parts.Practicality—The circuit performs a specific function, making it a fully functional electronic project.Simulation Value—Includes an instruction manual that serves as a reference for competitions, selection rounds, and exams.Cost-Effectiveness—Components can be repeatedly desoldered and reused, maximizing utilization.Flexibility—Each component is numbered but lacks parameter markings, allowing for flexible parameter adjustments.Intelligence—Upon power-up, the circuit automatically detects whether soldering is correct, with indicator lights signaling any faults.Innovation—The circuit features a novel design with moderate difficulty, exclusively created by Juzero Electronics; please do not imitate this design.Technical Depth—The circuit operates on a unique principle and comes with a complete schematic diagram. It features 10 test points to facilitate various tests, helping to enhance theoretical understanding.Friendly Reminder:Component colors may vary by batch; this does not affect functionality. Please consider this carefully if you are concerned!Assembling this DIY kit (loose parts) requires a certain level of technical knowledge and hands-on skill. There is a risk of damage during the assembly process. No after-sales support is provided for kits assembled by the user. Please choose carefully!Product List:The circuit includes the following components:1. 10 x 0603 surface-mount capacitors2. 10 x 0603-4P surface-mount resistor strips3. 2 x SOP-package integrated circuits4. 7 x 0805 surface-mount LEDs5. 15 x 0805 surface-mount resistors6. 10 1206 surface-mount resistors7. 14 0603 surface-mount resistors8. 8 3528 white surface-mount LEDs9. 10 2.54-mm test pins (optional; not included in the kit)10. One dedicated double-sided PCB board
