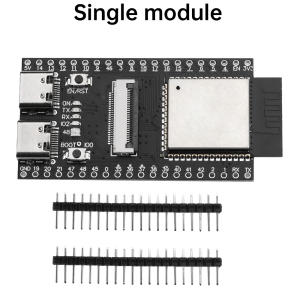

ESP32-S3 CAM Wi-Fi and Bluetooth Development Board ESP32-S3-WROOM-1 N16R8 Module OV2640/OV5640/OV3660 Camera Dual Type-C Port

Product Features:1. The ESP32-S3 is an ESP32S3 module designed with an on-board PCB antenna.2. The ESP32-S3 development board supports either the OV2640 or OV5640 camera.3. The ESP32-S3 is a low-power MCU system-on-chip (SoC) integrating dual-mode 2.4 GHz Wi-Fi and Bluetooth Low Energy wireless communication.4. Featuring complete Wi-Fi and Bluetooth Low Energy subsystems, the ESP32-S3 delivers industry-leading power efficiency and RF performance. It supports multiple low-power operating modes to meet diverse application power requirements.5. The ESP32-S3 chip provides extensive peripheral interfaces and incorporates multiple dedicated hardware security mechanisms. Its robust security architecture enables the chip to meet stringent security requirements.Performance Parameters:Controller: Dual-core 32-bit XtensaR LX7 CPU, operating at up to 240 MHzMemory:384 KB ROM512 KB SRAM16 KB RTCSRAM8 MB PSRAMOperating Voltage: 3V to 3.6VUp to 45 GPIO pins2 × 12-bit ADCs (up to 20 channels)Communication Interfaces:2 × I²C interfaces2 × I²S interfaces4 × SPI interfaces3 × UART interfaces1 × USB On-The-Go (OTG) interfaceTemperature Range: -40°C to 65°CWiFi:Supports IEEE 802.11 b/g/n protocolsSupports 20 MHz and 40 MHz bandwidths in the 2.4 GHz bandSupports 1T1R mode with data rates up to 150 MbpsWireless Multimedia (WMM)Frame aggregation (TX/RX A-MPDU, TX/RX A-MSDU)Immediate Block Acknowledgement (ImmediateBlock ACK)Fragmentation/Defragmentation - Beacon Auto-Monitoring (Hardware TSF) - 4× Virtual Wi-Fi InterfacesSimultaneously supports Infrastructure BSS Station mode, SoftAP mode, and Station+SoftAP mixed mode. Note: When scanning in Station mode, the SoftAP channel will change simultaneously on the ESP32-S3.Antenna Diversity802.11 MCPFTMExternal power amplifier supportBluetooth:Bluetooth Low Energy (BLE): Bluetooth 5, Bluetooth MeshHigh-power mode (20 dBm, sharing PA with Wi-Fi)Supported rates: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps.Broadcast ExtensionsMultiple Advertisement SetsChannel Selection Algorithm #2Wi-Fi and Bluetooth coexistence, sharing the same antennaAdvanced peripheral interfaces and sensors45 x GPIO portsDigital Interfaces:- 4xSPI- 1xLCD interface (8-bit- 16-bit parallel RGB, l8080, MOTO680), supporting conversion between RGB565, YUV422, YUV420, and YUV411- 1x DVP 8-bit to 16-bit camera interface- 3x UART- 2x I²C- 2x 12S- 1x RMT (TX/RX)- 1x Pulse counter- LED PWM controller, up to 8 channels- 1x Full-speed USB OTG- 1x USB Serial/JTAG controller- 2x MCPWM- 1x SDIO host interface with 2 card slots- General-purpose DMA controller (GDMA), 5 receive channels and 5 transmit channels- 1x TWAI controller, compatible with ISO 11898-1 (CAN specification 2.0)Analogue interfaces:- 2x 12-bit SAR ADCs, up to 20 channels- 1x Temperature Sensor- 14x Capacitive Sensing GPIOsTimers:- 4x 54-bit General Purpose Timers- 1x 52-bit System Timer- 3x Watchdog TimersProduct Dimensions: 57mm × 28mmProduct Listing:Kit One:1x Development Board2x Pin HeaderKit Two:1x Development Board2x Pin Header1x Camera (OV2640/OV5640/OV3660 selectable)
