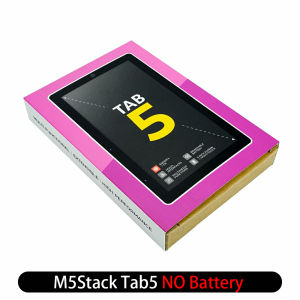

M5Stack | M5Stack TAB5 Portable Smart IoT Terminal Development Device 5inch IPS ESP32-P4 and ESP32-C6 Applications Smart Home Control

M5Stack TAB5 Portable Smart IoT Terminal Development Device Product Features ESP32‑P4 dual-core main controllerESP32‑C6 wireless moduleWi‑Fi 6Built-in 3D antenna & MMCX external antenna port5″ 720P MIPI‑DSI displayGT911 multi-point touchSC2356 2 MP cameraUSB‑A Host + USB‑C OTGRS‑485 industrial interfaceGrove & M5BUS expansionMicro SD card slotSTAMP expansionES8388 audio codecES7210 AEC dual microphone1 W speaker + 3.5 mm headphone jackBMI270 6-axis sensorRX8130CE real-time clockReset/Boot & Power buttonsNP‑F550 2S removable batteryStandard 1/4″‑20 tripod mountDevelopment platform:ESP-IDF Applications Smart home controlRemote monitoring systemsIoT device developmentIndustrial automation Package Includes 1 * Tab5 (without battery)1 * 1.25‑6P single‑end connector cablePlease note: Battery NP‑F550(not included)You need to buy from local market, or other camera store Specification Product details Kindly Remind Download Mode With USB cable or battery connected, long‑press the Reset button (2 seconds) until the internal green LED rapidly blinks; release to enter download mode and await firmware flashing.Battery InstallationWith device powered off, press and hold the red latch button on the board edge, align the metal contacts on the back of the battery module to the "BATTERY" slot, slide downward along the guide rails until flush, then release the red button to complete installation and power on.Power On/OffWhen powered by USB cable or battery: to power on from off, single-click the power button; to power off from on, double-click the power button. Schematics PinMap MBUSTab5 Board PinMap Overview Model Size Product Description Tab5 is a highly extensible, portable smart IoT terminal development device designed for developers, integrating a dual-chip architecture and abundant hardware resources. Its main controller adopts the RISC‑V–based ESP32‑P4 SoC, equipped with 16 MB Flash and 32 MB PSRAM; the wireless module uses the ESP32‑C6‑MINI‑1U, supporting Wi‑Fi 6. Its antenna system can freely switch between the built-in 3D antenna and the external MMCX antenna interface, flexibly adapting to different deployment environments to ensure data throughput and low-latency control. In terms of vision and interaction, Tab5 features a 5″ 1280×720 IPS TFT display via a MIPI‑DSI interface, with touch handled by the GT911 multi-point touch controller (I²C) for a smooth and responsive touch experience; it also includes an SC2356 2 MP camera (1600×1200) via a MIPI‑CSI interface, capable of high-definition video recording, image processing, and edge AI applications (e.g., face recognition, object tracking). For peripheral interfaces, Tab5 offers USB‑A (Host) and USB‑C (USB 2.0 OTG) ports for connecting traditional peripherals like a mouse or keyboard; industrial scenarios can use RS‑485 (SIT3088 + DIP switch–selectable 120 Ω termination) bus communication. Grove, M5BUS, GPIO_EXT header, and Micro SD card slot, as well as reserved STAMP pads (supporting Cat.M, NB‑IoT, LoRaWAN, etc.), allow flexible expansion with various sensors and communication modules. It also includes Reset/Boot buttons for quick reset and entering firmware download mode. In audio/video, Tab5 uses the ES8388 audio codec, paired with the ES7210 AEC echo-cancellation front end, a dual-microphone array, a 3.5 mm headphone jack, and a speaker for high-fidelity recording/playback and accurate voice recognition. The built-in BMI270 6-axis sensor (accelerometer + gyroscope, with interrupt wakeup) can trigger the main controller in motion-tracking and posture-detection scenarios, improving responsiveness in low-power conditions. For time and power management, Tab5 integrates the RX8130CE real-time clock (with timed interrupt wakeup), supports a removable 2S NP‑F550 lithium battery, and includes MP4560 boost/buck management, IP2326 charge/discharge control, and INA226 real-time monitoring circuitry—ensuring stable operation without external power. Structurally, Tab5 features a standard 1/4″‑20 tripod mount on the side, allowing direct attachment to tripods or other mounts for easy shooting and deployment. Tab5 is suitable for smart home control, remote monitoring, industrial automation, IoT prototyping, education, and research—providing developers and enterprises a comprehensive, easily expandable, high-performance development platform.
