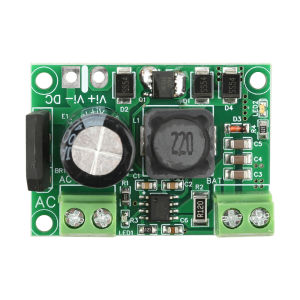

12V Acid Battery Charging Pad CN3768 Module 3-phase Smart Charge Constant Voltage & Current Float Charge Support AC/DC Input

Features:1. Three-stage intelligent charging design, high efficiency and safety, prolonging the battery service life2. Constant current charging technology, ensuring stable current output and avoiding the risk of overcharging.3. Support AC 12-20V and DC 15-30V input voltage range, suitable for a variety of power supply environment.4. High-precision voltage control reduces charging loss and improves charging efficiency.5. Compact and portable design, simple installation, wide range of applicationsProduct Description: The module adopts CN3768 charge management IC acid batteries must use three-stage charging, the charging process for the automatic charging process, constant current, constant voltage and float charging are three stages of three-stage charging must be. Three-stage lead-acid battery charger charging process is as follows:1. Constant current charging stage, the charger charging current is kept constant, the charging power increases rapidly and the battery voltage rises;2. Constant voltage charging stage, the charger charging voltage remains constant, the charging capacity continues to increase, the battery voltage rises slowly, and the charging current decreases;3. The battery is full, the charging current drops below the float conversion current, the charging voltage of the charger decreases to the float voltage; 4. Float charging stage, the charger charging voltage is maintained at the float voltage.Parameter:AC input interface: low voltage AC input interface, AC12-20VDC input interface: DC input interface, DC15-30VBattery interface: connect 12V acid battery, B+ battery positive pole, B-battery negative poleIndicator light: LED1 charging status light, lighted during charging processLED2 battery access indicator, access to the battery indicator lights upPackage include:CN3768 Acid Battery Charging module *1
