65W PD3.1 Fast Charging Module DC 8-30V Buck Converter Type-C Port Supports QC3.0 SCP PPS FCP AFC MultiProtocol Protection Board

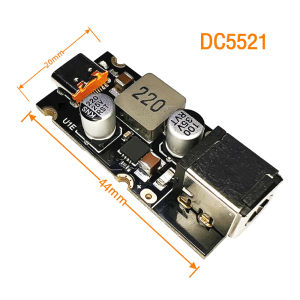

65W PD3.1 Fast Charging Module DC 8-30V Buck Converter Type-C Port Supports QC3.0 SCP PPS FCP AFC MultiProtocol Protection BoardFeatures:1.Supports PD3.1 (PPS), QC3.0, SCP2.With protection function, input overvoltage and undervoltage protection, input overcurrent protection, output overcurrent short circuit protection, and overall over-temperature protection3.Maximum output 20V 3.25A4.Input 8-30V (can only reduce voltage)5.The DC model is divided into two types: 5521 and 5525, with an outer diameter of 5.5mm and an inner diameter of 2.1mm; 5525: Outer diameter 5.5mm, inner diameter 2.5mm.Parameters:Input voltage: DC 8-30VOutput voltage: Automatically adjust between 3.3V and 21V when connected to a compatible TYPE-C receiving device (input voltage should be higher than output voltage, and if 20V fast charging is triggered, input voltage should be higher than 20V)Output power: maximum 65w (5V3A, 9V3A, 12V3A, 20V3.25A, etc.)Maximum output: 20V 3.25AConversion efficiency: 92%~97%Output voltage ripple:No-load current:Input overvoltage and undervoltage protectionInput overcurrent protectionOutput overcurrent short circuit protectionOverall over temperature protectionSupported charging protocols: PD3.1 (PPS), QC3.0, SCPProduct size:Standard version: 32 × twenty × 10mm (excluding 1mm protruding from the C-port base)With DC seat: 44 × twenty × 10mm (excluding 1mm protruding from the C-port base)Supported charging protocols:BC1.2, Apple ProtocolQualcomm QC2.0 and QC3.0Huawei Fast Charging Protocol FCP and SCPSamsung Fast Charging Protocol AFCMTK PE+1.1 and MTK PE+2.0PD2.0/PD3.1 (PPS) Output ProtocolProduct application: Various types of power supply transformation, fast charging outputInstructions:When using a 20-24V power adapter as input, it is recommended to first power on the power supply before connecting to this module. Otherwise, there may be an error in module matching power due to slow power on, resulting in the inability to output 65W.DC models are divided into two types: 5521 and 5525.5521: Outer diameter 5.5mm, inner diameter 2.1mm; 5525: Outer diameter 5.5mm, inner diameter 2.5mm.The length of the DC model has increased by 12mm to 44mm compared to the standard model, and both the Type-c mother seat and DC seat protrude about 1mm from the board edge. The 5521 model is also compatible with the 5525 plug with tuning fork shrapnelProduct temperature rise and output ripple:Test conditions: Input voltage 24V, ambient temperature 24 ℃, load of a laptop computer that supports PD65W (with approximately 50% battery capacity), and the computer undergoes pressure testing to ensure that the power terminal power reaches 65W.Package include:1X module
