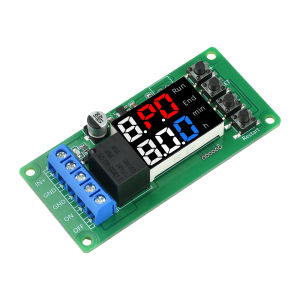

diymore | T2101 Relay Module DC 12V Dual Mode Single Channel Direct Output Programmable Timer Controller Delay Relay Module

Features:1. The relay features two output terminals—normally open and normally closed—for wiring. Only one output terminal can be energized at a time; both cannot conduct simultaneously.2. In set mode, the relay remains de-energized. The normally closed terminal (ON) conducts and provides output.3. Wide timing range: Digital cycle timer relay module supports time intervals from 0.01 seconds to 999 hours.4. Dual LED display: Features a red-blue dual LED display module and push-button controls for easy setting of delay times and operating modes.5. Supports multiple operating modes: Cycle switching, delayed startup, delayed shutdown, and infinite loop.Parameter:Operating Voltage: DC 12VRelay Type: 1-channel dual-mode normally open/normally closed relayTiming Units: 0.01 seconds/0.1 seconds/seconds/minutes/hoursTiming Range: 0~999, minimum increment 0.01 secondsLimited Cycles: Adjustable 1~999 cyclesRelay Engagement Time: 10msRelay Release Time: 5msTrigger Mode: Auto-trigger (default)/Manual triggerPower-off Retention: Retains settings only, does not save timeExternal Trigger: Reserved external trigger port; requires separate trigger device installationProduct Dimensions: 77.2 × 36.2 × 17mmPackage include:Module*1
