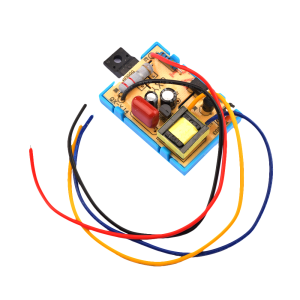

Switching Power Module 14-60 Inch LCD Television Switching Power Supply Board Universal Receiver Power Supply Adjustable 5V-24V

Product feature:1. Made with high-quality materials for guaranteed durability2. DC sampling ensures more stable voltage3. Remote shutdown capability and full functionality4. Four-wire connection for easy maintenance5. Wide range of applicationsSpecifications:Adjustable from 5V to 24V1. Connect the red wire to the drain (D) of the original device’s switching transistor (300V via the other end of the transformer).2. Connect the black wire to the negative terminal of the 300V filter capacitor (hot ground).3. Connect the yellow wire to the positive terminal of the 5-24V output filter capacitor.4. Connect the blue wire to the negative terminal of the output filter capacitor (cold ground).5. The white wire is a spare wire; if remote shutdown control is required, connect this wire to pin 4 of the optocoupler (high level turns on the power).Package Contents:Switching Power Supply Module * 1
