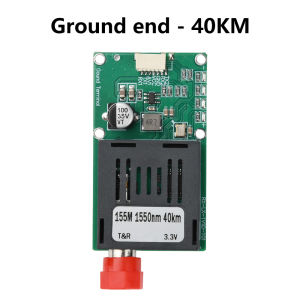

GAQQEE | Sky-end/Ground-end TTL Optical Transceiver Module DC 5.5-26V FC TTL to Fibre Module for Drones Drone Optical Transceiver

Product Features:1. Wide voltage supply 5.5-26V: Compatible with multiple battery types, ensuring stable operation for drone applications2. Communication range up to 20KM/40KM/60KM: Fibre optic transmission delivers lossless signals over extended distances, ideal for FPV control3. Lightweight design: Compact dimensions of just 50x29x13mm reduce equipment burden and enhance flight efficiency4. Dual-wavelength fibre communication: 1310nm for aerial end, 1550nm for ground end, safeguarding signal transmission quality5. Multi-indicator monitoring: Power, fibre, video, and data status clearly displayed for straightforward maintenanceDescription:This device is designed for drone signal transmission systems, featuring one analogue video channel and one TTL-level signal channel. It offers secure reliability, stable performance, lightweight construction, and high cost-effectiveness.Application Scenarios: FPV remote control, pipeline communication, emergency rescue communicationsProduct Specifications:Product Name: TTL Optical Transceiver ModulePower Supply: DC 5.5-26V (2S-6S battery)Power Consumption: ≤5WCommunication Interface: MX-SH1.0mm-5P: CRSF interface/CVBS video portFibre Optic Interface: FCCommunication Range: Maximum 20KM/40KM/60KM (selectable)Indicator Lights: Power indicator, fibre optic indicator, video signal indicator, data indicatorDimensions: 502913mmSky-side:Sky-side fibre wavelength: 1310nm. Interface definition: RX/TX/AV/VCC/GND. RX connects to the flight controller's CRSFTX port, TX connects to the flight controller's CRSFRX port, AV connects to the flight controller's AV signal output port.Ground End:The ground end fibre optic wavelength is 1550nm. Interface definitions: RX/TX/AV/VCC/GND. RX connects to the remote control receiver's CRSFTX, TX connects to the remote control receiver's CRSFRX, AV outputs to the display screen or VTX's AV signal input port.Important Notes:1. Ensure the power supply voltage does not exceed 26V, as exceeding this may cause damage.2. Ensure the voltage does not fall below 5V, as this may prevent the board's chips from functioning correctly.Delivery Contents:Module x1
