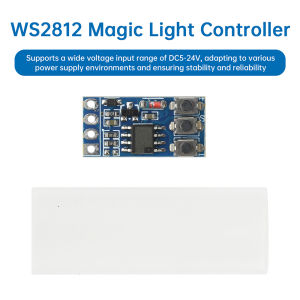

diymore | DC5-24V WS2812 Colorful Light Control Board RGB Light Strip Controller Breathing Atmosphere Light LED Driver Module

Product Features:1. Supports DC5-24V wide voltage input, adaptable to various power environments, stable and reliable2. WS2812 Colorful Light Controller, realizing breakpoint continuation to ensure seamless and uninterrupted lighting effects3. Flow light control board design, flexible control of RGB light strips, creating dazzling dynamic lighting effects4. Breathing atmosphere light function, rainbow gradient colors, creating a warm and comfortable environment atmosphere5. High compatibility and easy installation design, suitable for various RGB light strips, easy to operateProduct Parameters:Fantasy Lantern ControllerInput voltage range: DC 5-24V, DC3-5V two input ranges (3-5V when the back 3V jumper is short circuited)Maximum pixels: 900 RGB chipsWorking mode: 300 combinations of iridescent effects, moving left and rightSports speed: 6-speed settingSupporting LED strip types: WS2811, WS281216703790319034193518129263905 and other single or double line zeroing driver chips for LED stripsSerial port signal output frequency: Single line 800KHz zeroing code driver chip (dual channel output)Input reverse protection: Yes, reverse connection does not burn the modulePower off memory: Yes, all parameters will be automatically saved after settingWorking temperature: -20~+85 ℃Three channel RGB light controllerInput voltage range: DC 5-24V, DC3-5V two input ranges (3-5V when the back 3V jumper is short circuited)Maximum operating current: 3A/channelWorking mode: 5 mode settings1. Monochromatic breathing mode2. Dual color synchronous mixing breathing mode3. Dual color asynchronous mixing breathing mode4. Tri color mixed color calling mode5. Loop modeBreathing time: 8 time settings. 3 seconds to 24 seconds, a total of 8 levels, 3 seconds per levelMixing ratio: 10 levels of mixing ratio settings. 10% -100% color mixing ratioWorking frequency: 3KHz (high working frequency can effectively prevent flicker problems)Power off memory: Yes, all parameters will be automatically saved after settingPower on/off settings: You can set the default power on or off when powered on. Press and hold for 3 seconds to turn on, press and hold for 3 seconds to turn offInput reverse protection: Yes, reverse connection does not burn the moduleWorking temperature: -20~+85 ℃Package includes:Module * 1
