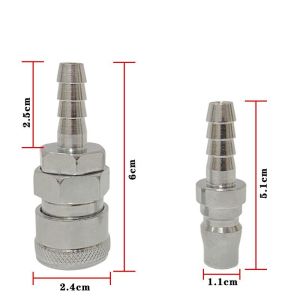

Quick Release Connector Pneumatic Fitting C Type Hose Coupling 1/4 Air Release Compressor Socket Adapet Plug SH20 PH20
Quick Release Connector Pneumatic Fitting C Type Hose Coupling 1/4 Air Release Compressor Socket Adapet Plug SH20 PH20
What is a Quick Release Connector?
A quick release connector, also known as a pneumatic fitting coupling, is a versatile plumbing fitting designed to facilitate the rapid connection and disconnection of air hoses and other pneumatic systems. These connectors are commonly used in various industries, including automotive, aerospace, manufacturing, and industrial settings, to provide a reliable and efficient means of connecting air hoses to compressors, tools, and other equipment.
Understanding the Design & Functionality
The design of a quick release connector typically consists of two main components: the male plug and the female socket. These components are engineered to fit together seamlessly, creating a secure connection that can withstand high pressure and frequent use. The C-type hose coupling is a popular design that features a spring-loaded mechanism, allowing for easy and rapid attachment and detachment of the air hose.
Key Features & Benefits
Some key features and benefits of quick release connectors include:
-
Easy Installation: With a simple push-and-pull mechanism, quick release connectors are effortless to install and remove, saving time and reducing the risk of damage to equipment.
-
Wide Range of Applications: Quick release connectors can be used in various industries and settings, making them a versatile solution for connecting air hoses and pneumatic systems.
-
Durable Material Construction: Quick release connectors are typically made from high-quality materials, such as stainless steel or brass, ensuring long-lasting performance and reliability.
-
Versatile Quick Connectors: Available in various sizes and configurations, quick release connectors can accommodate different hose diameters and pressure requirements, making them suitable for a wide range of applications.
-
High Pressure Compatibility: Designed to withstand high pressure, quick release connectors provide a secure connection that can handle demanding pneumatic systems and applications.
How to Install a Quick Release Connector
Installing a quick release connector is a straightforward process that can be completed in just a few simple steps. Here's how to install a quick release connector:
-
Identify the male plug and female socket: Locate the male plug and female socket components of the quick release connector.
-
Attach the male plug to the hose: Insert the male plug into the end of the air hose and secure it in place using the provided nut or clamp.
-
Connect the female socket to the compressor or tool: Attach the female socket to the compressor or tool by inserting it into the appropriate port or fitting.
-
Push the male plug into the female socket: Align the male plug with the female socket and push them together until they click into place, creating a secure connection.
Troubleshooting Common Issues
While quick release connectors are designed to be user-friendly, there may be instances where issues arise during installation or use. Here are some common issues and their solutions:
-
Leaking Connection: If the connection is leaking, ensure that the male plug and female socket are securely connected and tightened. If the issue persists, check for any damage or wear on the connector components and replace them if necessary.
-
Difficulty Connecting: If the male plug and female socket are difficult to connect, check for any debris or obstructions on the connector surfaces. Clean the surfaces and try connecting again.
-
Loose Connection: If the connection feels loose or unstable, check that the nut or clamp securing the male plug to the hose is tight and secure.
Applications & Use Cases for Quick Release Connectors
Quick release connectors have a wide range of applications and use cases across various industries. Here are some examples:
Industrial & Manufacturing Environments
In industrial and manufacturing environments, quick release connectors are commonly used to connect air hoses to compressors, tools, and machinery. They provide a reliable and efficient means of connecting pneumatic systems, allowing for easy maintenance and repair.
Automotive & Aerospace Industries
In the automotive and aerospace industries, quick release connectors are used to connect air hoses to various components and systems, such as brakes, steering, and suspension. They provide a secure and reliable connection that can withstand the demands of these industries.
Ensuring Compatibility & Safety
When selecting and using quick release connectors, it's important to consider compatibility and safety factors. Here are some key considerations:
Material & Pressure Considerations
Quick release connectors are typically made from materials such as stainless steel or brass, which offer durability and resistance to corrosion. When selecting a quick release connector, ensure that it is compatible with the material of the air hose and the pressure requirements of the pneumatic system.
Testing & Inspection Procedures
To ensure the safety and reliability of quick release connectors, regular testing and inspection procedures should be followed. This includes checking for any signs of wear or damage, testing the connection for leaks, and replacing any faulty components as needed.
Conclusion
Quick release connectors are a versatile and efficient solution for connecting air hoses and pneumatic systems in various industries and settings. With their easy installation, wide range of applications, durable material construction, and high-pressure compatibility, quick release connectors offer a reliable and convenient means of connecting pneumatic systems. By following proper installation procedures and considering compatibility and safety factors, quick release connectors can provide a secure and efficient connection for a wide range of applications.
