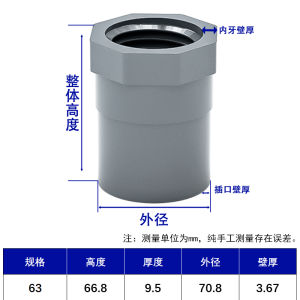

Gray PVC Inner Thread Direct Pass Threaded Joint: A Comprehensive Guide

What is a Gray PVC Inner Thread Direct Pass Threaded Joint?

A Gray PVC Inner Thread Direct Pass Threaded Joint, also known as a 20-110mm Industrial Pipe Fitting, is a versatile and reliable pipe fitting used in various industrial applications. This 4-part PVC pipe fitting features a gray PVC inner thread connector, allowing for seamless connections between pipes. The direct pass threaded joint ensures smooth water flow, making it ideal for use in water supply systems, irrigation, and drainage projects.

Key Features & Specifications

• Material: High-quality gray PVC
• Thread Type: Inner thread
• Size Range: 20-110mm
• Connection Type: Direct pass threaded joint
• Applications: Water supply, irrigation, drainage, and more

Applications & Benefits

Gray PVC inner thread direct pass threaded joints are widely used in industries such as construction, agriculture, and manufacturing. These fittings offer numerous benefits, including:

• Durability: Made from high-quality gray PVC, these fittings can withstand harsh conditions and last for years.
• Ease of Installation: With a simple design, these fittings are easy to install and maintain.
• Water Efficiency: The direct pass threaded joint ensures smooth water flow, reducing pressure loss and improving overall system efficiency.

How to Choose the Right 20-110mm Industrial Pipe Fitting

When selecting a 20-110mm industrial pipe fitting, it's essential to consider the specific requirements of your project. Here are some factors to keep in mind:

Understanding the Different Types of Connectors

There are several types of connectors available, including:

• Straight through connectors: Ideal for connecting two pipes in a straight line.
• Elbows: Used to change the direction of water flow.
• Tees: For branching off a main pipeline.

Factors to Consider When Selecting a Fitting

• Pipe size: Ensure the fitting matches the diameter of your pipes.
• Flow rate: Consider the required flow rate for your application.
• Pressure rating: Check the pressure rating to ensure the fitting can handle the expected water pressure.

Installation & Maintenance Tips for Gray PVC Inner Thread Connectors

Proper installation and maintenance are crucial for ensuring the longevity and efficiency of gray PVC inner thread connectors. Here are some tips to help you get started:

Step-by-Step Installation Guide

1. Prepare the pipes: Clean the ends of the pipes and ensure they are free from dirt and debris.
2. Apply pipe dope: Apply a small amount of pipe dope to the threads of the fitting.
3. Connect the fitting: Screw the fitting onto the pipe, turning it clockwise until it is snug.
4. Test the connection: Check for leaks by turning on the water supply and inspecting the connection.

Troubleshooting Common Issues

• Leaking connections: Reapply pipe dope and tighten the fitting.
• Clogged pipes: Use a pipe cleaning tool to remove any blockages.
• Loose fittings: Tighten the fitting and retest the connection.

Regular Maintenance Practices

• Inspect connections: Periodically check for leaks and loose fittings.
• Clean pipes: Remove any debris or buildup to maintain smooth water flow.
• Replace worn parts: Replace any damaged or worn-out fittings to prevent leaks and maintain system efficiency.

Frequently Asked Questions about Direct Pass Threaded Joints

How Do I Know if I Need a Gray PVC Inner Thread Connector?

If you're working on a project that requires connecting two pipes in a straight line, a gray PVC inner thread connector may be the perfect solution. These fittings are ideal for water supply systems, irrigation, and drainage projects.

Are There Any Safety Precautions I Should Follow During Installation?

Yes, it's important to follow safety guidelines during installation. Always wear protective gear, such as gloves and safety glasses, and ensure the water supply is turned off before starting the installation process.

Can I Use Gray PVC Inner Thread Connectors with Other Pipe Materials?

While gray PVC inner thread connectors are specifically designed for use with PVC pipes, they can also be used with other compatible materials, such as ABS and CPVC. However, it's essential to consult the manufacturer's specifications to ensure compatibility.
