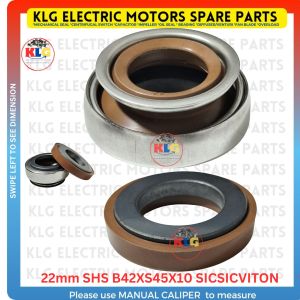

Mechanical Seal 22mm SHS B42XS45X10 SSV | Shaft Seal for Water Pump

In this comprehensive guide, we will delve into the world of mechanical seals, specifically focusing on the 22mm SHS B42XS45X10 SSV shaft seal for water pumps. We will explore its specifications, installation process, maintenance tips, and troubleshooting techniques to help you make the most out of this high-performance seal.

Understanding the 22mm Shaft Seal

Precision Mechanical Seal Overview

Mechanical seals, like the 22mm SHS B42XS45X10 SSV, are crucial components in various industrial applications, including water pumps. They provide a reliable solution for sealing rotating shafts and preventing fluid leakage. These seals are designed to offer a high level of precision and performance, ensuring optimal operation and longevity.

SSS B42XS45X10 Seal Specifications

The SSS B42XS45X10 seal is specifically engineered for water pumps, boasting impressive specifications:

• Seal Diameter: 22mm
• Material: High-quality stainless steel
• Operating Temperature Range: -20°C to +120°C
• Maximum Pressure: 10 bar

Choosing the Right High-Performance Water Pump Seal

Factors to Consider When Selecting a Seal

When choosing a mechanical seal for your water pump, there are several factors to consider:

• Compatibility: Ensure the seal is compatible with your specific water pump model and application.
• Durability: Opt for a seal made from high-quality materials that can withstand harsh operating conditions.
• Maintenance Requirements: Choose a seal that requires minimal maintenance to reduce downtime and costs.

Comparing Different Types of Water Pump Seals

Water pump seals come in various types, each with its own advantages and disadvantages. Some common types include:

• Cartridge Seals: These seals are easy to install and replace, making them ideal for applications requiring frequent maintenance.
• Mechanical Seals: Mechanical seals, like the SSS B42XS45X10, provide superior performance and reliability, making them suitable for demanding applications.
• Lip Seals: Lip seals are less expensive than mechanical seals but may require more frequent replacement due to wear and tear.

How to Install a 22mm Shaft Seal

Tools and Materials Needed

Before installing the 22mm SHS B42XS45X10 SSV shaft seal, gather the following tools and materials:

• Seal Kit: Includes the mechanical seal, O-rings, and other necessary components.
• Wrenches: For tightening bolts and nuts.
• Pliers: For removing old seals and O-rings.
• Clean Cloth: For cleaning the seal and pump components.
• Lubricant: To ensure smooth installation.

Step-by-Step Installation Process

Follow these steps to install the 22mm SHS B42XS45X10 SSV shaft seal:

1. Preparation: Clean the pump and shaft thoroughly, removing any old seals or O-rings.
2. Install O-Rings: Apply lubricant to the O-rings and install them onto the seal gland.
3. Insert Seal: Insert the seal into the gland, ensuring proper alignment.
4. Tighten Bolts: Tighten the bolts evenly, using a wrench to secure the seal in place.
5. Final Inspection: Inspect the installation for any signs of misalignment or damage.

Maintaining Optimal Performance of the 22mm Shaft Seal

Regular Inspection and Maintenance Tips

To maintain optimal performance of the 22mm SHS B42XS45X10 SSV shaft seal, follow these inspection and maintenance tips:

• Regularly Inspect: Check the seal for any signs of wear, damage, or misalignment.
• Clean Components: Clean the pump and seal components regularly to prevent buildup of debris or contaminants.
• Lubricate: Apply lubricant to the seal and O-rings as needed to ensure smooth operation.
• Monitor Performance: Keep an eye on the water pump's performance, addressing any issues promptly to prevent further damage.

Troubleshooting Common Issues

If you encounter any issues with your 22mm SHS B42XS45X10 SSV shaft seal, refer to this troubleshooting guide:

• Leakage: Check for proper installation, alignment, and O-ring condition.
• Vibration: Inspect the pump and shaft for misalignment or imbalance.
• Overheating: Ensure proper lubrication and cooling.

By following these guidelines, you can ensure the optimal performance and longevity of your 22mm SHS B42XS45X10 SSV shaft seal, helping your water pump operate efficiently and reliably.
