TTL Serial Port To RS485 Converter Module: An Overview

Welcome to our comprehensive guide on the TTL Serial Port To RS485 Converter Module with Cable, a versatile communication module designed to enhance your project capabilities. This article will provide you with a detailed understanding of the module, its features, compatibility, and applications.

What is the TTL Serial Port To RS485 Converter Module?

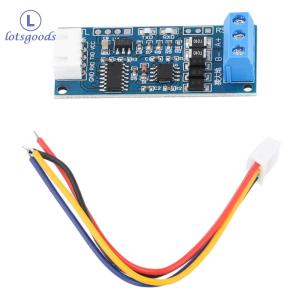

The TTL Serial Port To RS485 Converter Module is a compact device that converts TTL serial signals to RS485 communication protocol, allowing users to easily integrate their projects with various devices and systems. This module supports both 3.3V and 5V logic levels, making it compatible with a wide range of microcontrollers, including Arduino boards.

Key Features

• Wide Voltage Range: Supports 3.3V and 5V logic levels
• RS485 Communication Protocol: Enables reliable data transmission over long distances
• Indicator LEDs: Provides visual feedback for RXD and TXD signals
• Compact Design: Easy to integrate into existing projects

Compatibility & Specifications

The TTL Serial Port To RS485 Converter Module is compatible with various microcontrollers, such as Arduino boards, Raspberry Pi, and other development platforms. It supports the RS485 communication protocol, ensuring seamless integration with devices and systems that use this protocol. The module operates within a voltage range of 3.3V to 5V, making it versatile for different applications.

How to Use the RS485 Module with Cable

To utilize the TTL Serial Port To RS485 Converter Module effectively, follow these steps:

Connecting the RS485 Module to Arduino

1. Connect the GND pin of the module to the GND pin of the Arduino board.
2. Connect the VCC pin of the module to the 3.3V or 5V pin of the Arduino board, depending on your desired logic level.
3. Connect the TXD pin of the module to the RX pin of the Arduino board.
4. Connect the RXD pin of the module to the TX pin of the Arduino board.

Configuring the Arduino RXD TXD Indicator

After connecting the module to the Arduino board, configure the RXD and TXD indicator LEDs by modifying the code. The indicator LEDs provide visual feedback for data transmission, allowing users to monitor the communication process.

Benefits & Applications of the TTL Serial Port To RS485 Converter Module

Enhancing Communication Capabilities

The TTL Serial Port To RS485 Converter Module significantly enhances communication capabilities by converting TTL serial signals to RS485 protocol. This allows users to transmit data over long distances while maintaining reliability and accuracy. The module's wide voltage range and compatibility with various microcontrollers make it a versatile solution for different applications.

Expanding Project Possibilities

With the TTL Serial Port To RS485 Converter Module, users can expand their project possibilities by integrating devices and systems that use the RS485 communication protocol. This opens up new opportunities for automation, remote monitoring, and data acquisition projects.

Conclusion

In conclusion, the TTL Serial Port To RS485 Converter Module is a valuable addition to any project that requires reliable data transmission over long distances. Its compatibility with various microcontrollers, support for 3.3V and 5V logic levels, and indicator LEDs make it a versatile solution for enhancing communication capabilities and expanding project possibilities. Whether you're working on automation, remote monitoring, or data acquisition projects, the TTL Serial Port To RS485 Converter Module is a must-have component.
