US Plug Lab DC Power Supply: A Comprehensive Guide

Introduction to the US Plug DC Power Supply

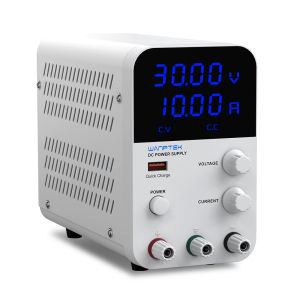

The US Plug Lab DC Power Supply Variable 0-30V 10A Adjustable Bench Switching with 4-Digits LED Display 5V/3.6A USB Quick-Charge Power Supply with Encoder Adjustment Knob is a versatile and reliable power supply solution designed specifically for American users. This device offers a wide range of features, including variable output voltage, adjustable current, and USB fast charging capabilities.

Key Features

• Variable Output Voltage: The GPS3010U model supports output voltages ranging from 0 to 30 volts, allowing users to adjust the voltage according to their specific needs.
• Adjustable Current: The power supply can deliver currents up to 10 amperes, making it suitable for various applications, including testing, prototyping, and powering electronic devices.
• USB Fast Charging: The power supply includes a USB-A port that supports various fast charging protocols, such as Qualcomm Quick Charge 3.0, USB Power Delivery, and Apple 2.4A.
• Safety Measures: The device incorporates several safety features, including current limiting protection, short circuit alarm stop output, and self-recovery functionality.

Specifications & Capabilities

• Input Voltage: AC 230V/115V±10%, 50Hz/60Hz
• Output Voltage: 0~30V
• Output Current: 0~10A
• Maximum Output Power: 300W
• USB-A Fast Charging: Supports various fast charging protocols
• Safety Measures: Current limiting protection, short circuit alarm stop output, self-recovery functionality

How to Use the 5V 3.6A USB Quick-Charge Feature

Setting Up the USB Fast Charging

To utilize the USB fast charging feature, simply connect your compatible device to the USB-A port on the power supply. The power supply will automatically detect the connected device and provide the appropriate charging current.

Supported Fast Charging Protocols

The power supply supports various fast charging protocols, including Qualcomm Quick Charge 3.0, USB Power Delivery, and Apple 2.4A. This ensures compatibility with a wide range of devices, including smartphones, tablets, and other portable electronics.

Understanding the Variable Adjustable Bench Power Supply

Encoder Adjustment Knob Power Supply

The power supply features an encoder adjustment knob that allows users to easily adjust the output voltage and current. This makes it ideal for testing, prototyping, and powering electronic devices.

4-Digit LED Display Power Supply

The power supply includes a 4-digit LED display that shows the current output voltage and current. This provides users with real-time feedback on the power supply's performance and helps ensure accurate settings.

Safety Measures & Protection Features

Current Limiting Protection

The power supply includes current limiting protection, which automatically limits the output current to prevent damage to connected devices.

Short Circuit Alarm Stop Output

The power supply includes short circuit alarm stop output functionality, which automatically stops the output in the event of a short circuit.

Self-Recovery Functionality

The power supply includes self-recovery functionality, which automatically resets the device after a short circuit or other fault condition has been resolved.

In conclusion, the US Plug Lab DC Power Supply Variable 0-30V 10A Adjustable Bench Switching with 4-Digits LED Display 5V/3.6A USB Quick-Charge Power Supply with Encoder Adjustment Knob is a versatile and reliable power supply solution designed specifically for American users. With its wide range of features, including variable output voltage, adjustable current, and USB fast charging capabilities, this power supply is ideal for testing, prototyping, and powering electronic devices.
