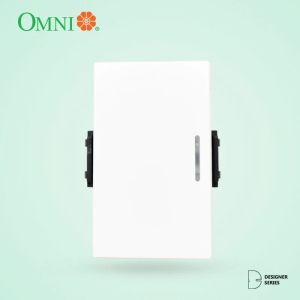

OMNI 3-Way Illuminate Switch 3-Gang Size 16A Designer Series - DWS-524

What is the OMNI DWS-524 Switch?

The OMNI DWS-524 Switch is a high-quality, 3-way illuminate switch designed for easy installation and long-lasting performance. This 3-gang size switch is part of the OMNI Designer Series and is suitable for residential and commercial applications. It features a durable ABS material construction that doesn't easily break, making it a reliable choice for your electrical needs.

Key Features & Specifications

• Brand: OMNI
• Model: DWS-524
• Material: ABS
• Power Rating: 16A
• Design: 3-gang size, 3-way illuminate switch
• Compatibility: Suitable for residential and commercial applications

Compatibility & Applications

The OMNI DWS-524 Switch is compatible with various electrical systems and is suitable for both residential and commercial installations. It is designed to conform to local and international standards on safety and quality, making it a reliable choice for any project.

How to Install the OMNI DWS-524 Switch

Installing the OMNI DWS-524 Switch is a straightforward process, and this section will guide you through the steps to ensure a successful installation.

Preparing for Installation

Before beginning the installation process, gather the necessary tools and materials, including the OMNI DWS-524 Switch, mounting screws, and a screwdriver. Ensure that the power is turned off at the circuit breaker to avoid electrical hazards.

Step-by-Step Guide

1. Remove the existing switch plate and disconnect the wires from the old switch.
2. Mount the new OMNI DWS-524 Switch onto the wall box using the provided mounting screws.
3. Connect the wires to the corresponding terminals on the switch.
4. Secure the switch plate over the switch and turn the power back on at the circuit breaker.

Troubleshooting Common Issues

If you encounter any issues during installation, refer to the OMNI DWS-524 Switch user manual for troubleshooting tips. Common issues may include incorrect wiring connections or loose screws. Always ensure that the power is turned off before attempting any repairs or adjustments.

Benefits of Using the OMNI DWS-524 Switch

The OMNI DWS-524 Switch offers several benefits that make it a valuable addition to any electrical system.

Enhanced Safety & Reliability

The OMNI DWS-524 Switch is engineered to conform to local and international standards on safety and quality, ensuring a reliable and safe electrical connection. It features a durable ABS material construction that doesn't easily break, making it a reliable choice for your electrical needs.

Low Power Consumption & Energy Efficiency

The OMNI DWS-524 Switch uses 93% copper on the insides, making it a good conductor of electricity and energy-efficient. This reduces power consumption and helps lower energy costs.

Innovative Design & Easy Installation

The OMNI DWS-524 Switch features an innovative snap-together design that allows for quick and easy installation. The urea resin outer cover is water-proof, flame-retardant, heat-resistant, highly insulating, and not easily deformed at high temperatures, making it a durable and reliable choice for your electrical system.

Conclusion & Final Thoughts

The OMNI DWS-524 Switch is a high-quality, 3-way illuminate switch that offers enhanced safety, reliability, low power consumption, and energy efficiency. Its innovative design and easy installation make it a valuable addition to any electrical system. Whether you're looking to upgrade your existing electrical system or install a new one, the OMNI DWS-524 Switch is a reliable choice that will meet your needs.
