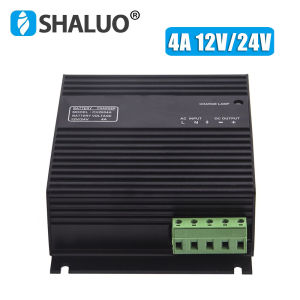

Ch2804a 12v 24V 4A generator Battery Charger Module inligent automatic floating charger circuit design adapter spare parts power generator

Smart Charger for storage batteryWorking from inligent charger storage battery is specially designed for starting (especially suitable for full closed solid wide temperature storage battery) in diesel engine. It is an inligent mode of switch structure. It is the only charger on the market that can automate charging , and can automatic switch over the corresponding output . It has constant pressure, fixed , deceptive , short circuit resistance, and automatic ftion.1. Product Features1.1 Wide working AC 160-277v, and working frequency 20-100hz, the machine is still charged with low rotation speed (users can directly replace the charger).1.2 can work in wide temperature antara-40 C and + 50 C, and can be used in A98 % RH wet condition without contacting1.3 constant and fast charging. When the battery charging pressure is lower than the device value (12V battery Group1.4 Limited. When the battery storage is full, (12V battery group> 12v.24v Battery Group> 24V) charge will be automatically limited. (See constant section in Graph 1)1.5 cheat and floating charging. It will switch to floating charging in about 0.1-0. 2a (relevant to the amount of electricity of objective equipment consumed) when reaches set value. (13.8 V in 12v state, and 27.6 in 24V),1.6 stop filling. When the of the battery reaches a full value, (14 V in the state of12v, and 28V in 24v) the filling will fully cover.1.7 over and protection against for short circuit. Charging machine ftion in over and protection against short circuit. When the battery capacity is large, (small innerresistance) bearing short circuit or filling machine close to normal electricity and the storage battery starts diesel engine at the same time, the output will remain constant and will not be destroyed. So, when the storage battery is used as a starting battery, the charging enginecannot is closed.1.8 soft start. Because the system adopts soft start ftion, it will not produce sparkfor electrical impulse. In addition, when the machine is connected online, it will not interfere with the electrical system.2. Instructions for use2.1 battery charging is specially designed for storage battery. Its output contains positive impulse elements for charge, but it is not suitable for power supplier for electrical equipment, or it will interfere with electrical equipment. But it will be different when charging the battery storage.2.2 connecting strips. L is 220V fire line. N is a zero line of 220V. L is groundline. Is a positive pole, and-is a negative pole. The tip of the ground should be well connected!2.3 if the user does not have precautions against earthquakes, not directly install on diesel group.2.4 although the cost is handled with wet-proofing, should be careful that water or other liquids should not be adhered to. In addition, ventilating and keeping away from thermal radiation should be kept an alarm in the installation to prevent damage to high temperatures there is a light-emitting diode (LED) on the face board. When it appears different colors, it shows different working conditions. Red-constant and fast charging. It means that the charging is the maximum value. (The output LED is also red). Orange (red and green) is the charging phase . Charging is less. If it is redder, the is larger; if it is greener, the situation will be the opposite. Green indicates almost fi storage battery; LL. (The output LED is also green)
