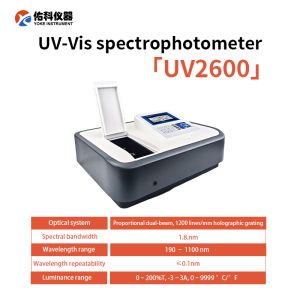

UV2600 UV-Vis Spectrophotometer High Accuracy Absorbance Measurement Laboratory Analyzer

UV-VIS SpectrophotometerUV2600 & UV2800 SeriesModels: UV2600 | UV2600PC | UV2800 | UV2800PC1. Product OverviewThe UV2600/UV2800 Series UV-Vis Spectrophotometers feature a brand-new optical path design with globally sourced premium components, delivering superior instrument performance to meet the demands of the most professional analytical users. They are widely applicable in organic chemistry, biochemistry, pharmaceutical analysis, food safety inspection, healthcare, environmental protection, and life science research.2. Key Features·7-inch TFT color LCD display:Large true-color TFT display with OMRON tactile buttons (rated for millions of presses); directly displays scan curves and spectra for intuitive analysis.·USB storage with universal format support:Data can be opened and edited without specialized software. Supports multiple output formats: CSV (Excel-compatible), QUA, TXT, and BMP image capture.·Built-in 16GB flash memory (standard):Generous onboard storage; supports USB flash drive expansion for additional data archiving.·Advanced ARM11 + Cortex-M3 dual-core processor:Industry-first ARM11 embedded chip with 32-bit Cortex-M3 co-processor running at 120 MHz for high-speed dual-core collaborative computing. Stores up to 2,000 test data records or 500 working curves.·Suspension optical system:Patented suspension-style optical path with reinforced thick aluminum base plate, eliminating vibration and deformation effects. Dual-layer construction separates optical and electronic circuits for superior resolution and stability.·Photoelectric signal detection:Advanced photoelectric signal detection device ensures lower signal-to-noise ratio and enhanced instrument stability.·Automatic light source switching:Imported long-life deuterium lamp and tungsten lamp with automatic switching for seamless UV-to-visible wavelength transitions.·Optional automatic sampling system:Available with built-in full-automatic sampling flow system for high-throughput workflows.·Optional 8-cell cuvette holder:Patented rotary 8-cell automatic cuvette rack ensures optical beam passes precisely through the center of each cuvette for maximum measurement accuracy.3. Technical SpecificationsParameterUV2600(Ratio DoubleBeam)UV2600PC(Ratio DoubleBeam + PC)UV2800(Double Beam)UV2800PC(Double Beam+ PC)Optical SystemRatio double beamRatio double beamDouble beamDouble beamWavelength Range190–1100 nm (full UV-Vis)190–1100 nm (full UV-Vis)190–1100 nm (full UV-Vis)190–1100 nm (full UV-Vis)Spectral Bandwidth1.8 nm1.8 nm1.8 nm1.8 nmWavelength Accuracy±0.3 nm±0.3 nm±0.3 nm±0.3 nmWavelength Repeatability≤0.1 nm≤0.1 nm≤0.1 nm≤0.1 nmWavelength Resolution0.1 nm0.1 nm0.1 nm0.1 nmStray Light≤0.05%T @220/340nm;≤0.1%T @420nm≤0.05%T @220/340nm;≤0.1%T @420nm≤0.05%T @220/340nm;≤0.1%T @420nm≤0.05%T @220/340nm;≤0.1%T @420nmPhotometric Range0–200%T;−3–3A;0–9999C/F0–200%T;−3–3A;0–9999C/F0–200%T;−3–3A;0–9999C/F0–200%T;−3–3A;0–9999C/FPhotometric Accuracy±0.3%T±0.3%T±0.3%T±0.3%TTransmittance Repeatability≤0.1%T≤0.1%T≤0.1%T≤0.1%TBaseline Flatness±0.001 Abs±0.001 Abs±0.001 Abs±0.001 AbsLight SourceImported long-lifeD2 lamp + tungsten lamp(auto switching)Imported long-lifeD2 lamp + tungsten lamp(auto switching)Imported long-lifeD2 lamp + tungsten lamp(auto switching)Imported long-lifeD2 lamp + tungsten lamp(auto switching)Display7-inch TFT color LCD7-inch TFT color LCD7-inch TFT color LCD7-inch TFT color LCDProcessorARM11 + 32-bitCortex-M3 @120MHz(dual-core)ARM11 + 32-bitCortex-M3 @120MHz(dual-core)ARM11 + 32-bitCortex-M3 @120MHz(dual-core)ARM11 + 32-bitCortex-M3 @120MHz(dual-core)Data StorageBuilt-in 16GB flash(standard);USB expandableBuilt-in 16GB flash(standard);USB expandableBuilt-in 16GB flash(standard);USB expandableBuilt-in 16GB flash(standard);USB expandableCommunication InterfaceRS-232C (printer);USB Drive (PC link);USB HOST (USB drive)RS-232C (printer);USB Drive (PC link);USB HOST (USB drive)RS-232C (printer);USB Drive (PC link);USB HOST (USB drive)RS-232C (printer);USB Drive (PC link);USB HOST (USB drive)Output Formats.csv (Excel-compatible),.qua, .tet, .bmp.csv (Excel-compatible),.qua, .tet, .bmp.csv (Excel-compatible),.qua, .tet, .bmp.csv (Excel-compatible),.qua, .tet, .bmp4. Typical ApplicationsOrganic Chemistry · Biochemistry · Pharmaceutical Analysis · Food Safety Inspection · Healthcare & Medical · Environmental Monitoring · Life Science Research · Quality Control5. Ordering InformationModelOptical SystemWavelength RangePC SoftwareUV2600Ratio double beam190–1100 nmNot includedUV2600PCRatio double beam190–1100 nmIncludedUV2800Double beam190–1100 nmNot includedUV2800PCDouble beam190–1100 nmIncluded6. Optional Accessories·Built-in full-automatic sampling flow system·Patented rotary 8-cell automatic cuvette rack·Dedicated external printer·PC connection software & USB cable
