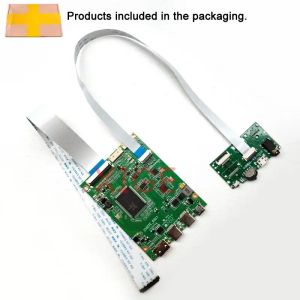

For LP156WF4 LP156WFC LCD Display Controller Board HDMI-Micro USB TYPE-C Laptop Screen 30 Pin EDP 15.6" DIY Kit 1920x1080

Instructions for purchasing this kit: 1, Before purchasing, please ensure that your screen can be opened and displayed normally. If your screen itself cannot display properly, please do not place an order. Because the controller board cannot repair and drive damaged screens. 2, We need to install driver firmware for free based on your screen model. So please choose the exact same model as our sales list (including the model suffix). If your screen model is not listed, please provide us with the complete screen model. Or send us photos of the model label and signal port on the back of the screen to help confirm. The model label can be found on the back of the screen. As shown in the reference photo below: 3, Controller board input power supply: DC 5V 3A Please use USB-C 3.0 (5Gbps) or higher specification signal cable for input. This can simultaneously supply power to the controller board and transmit video signals. 4, This controller board is only suitable for EDP 30 pin (0.5mm pitch) LCD screens. Input: Mini-HDMI, 2 USB-C 3.0 Output: Earphone, PH1.25 4-pin 51146 speaker socket Micro USB can be used to connect OTG mouse or keyboard OSD Language: Chinese, English, Spanish, French, Russian, Japanese, Korean When the correct signal source input is not detected, the controller board will enter standby mode. The keypad cannot respond and can only be turned on or off. Please check if the connected device supports USB-C 3.0 port and use USB-C 3.0 (5Gbps) or higher specification signal cable for connection. 5, The kit includes: 1Pcs x Controller motherboard 1Pcs x EDP 30-Pin signal cable 1Pcs x Roller keyboard with cable 6, Please refer to the photo below to set the language. (The OSD menu has multiple interfaces. If different, please contact us) 7, If you have any problems during the operation. Please contact us first and provide some detailed photos or videos. We will provide you with assistance and guidance. Thank you very much.
