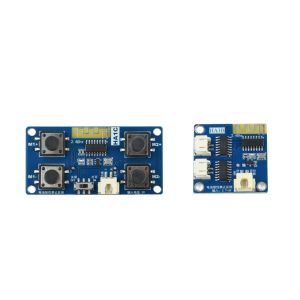

DIY RC Toy Car Robot Remote Control 2.4G 4-Channel Receiver Module Kit Rechargeable For DIY RC Cars Boats & Robots

Features1. 2.4 GHz interference resistance, stable signal with strong penetration; no frequency crosstalk even when multiple users are in the same area2. Four independent channels for forward/reverse/left turn/right turn; flexible control with fast response3. Differential two-way communication ensures precise control with low latency; compatible with both car and boat models4. Features XH2.0 and PH2.0 standard interfaces for more secure and reliable connections5. Intelligent automatic frequency pairing design with indicator lights for more convenient operationParameterReceiver board operating voltage: 3V–6V (does not support 7.4V)Peak current: 2.5ARemote control operating voltage: 3V–3.7VCompatible Motors: N20 and TT motors with speeds up to 12,000 RPM, as well as standard-speed 130, 180, and 280 motors (hollow-cup motors and high-torque motors of any model are not compatible)Control Range on Open Land: 80 metersControl Range on Open Water: 50 metersPairing InstructionsPairing is required before first use.Follow these steps to pair:1: First, turn off both the receiver board and the remote control. Then, press and hold the M1+ and M1- buttons on the remote control (do not release) while turning on the remote control. Continue holding until the remote’s LED flashes rapidly, indicating it has entered pairing mode.2: Once the remote control’s LED starts flashing, release both buttons. Then turn on the receiver you wish to pair with. Pairing will automatically complete the moment the receiver powers on (it will automatically connect the next time it is turned on). At this point, the remote control’s LED will stop flashing. Pressing any button on the remote control will cause the corresponding lights on both the remote control and the receiver to turn on and off, indicating that the pairing was successful.Package includeReceiver *1Remote Control *1
