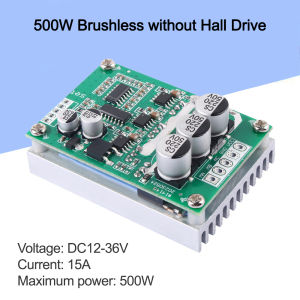

GAQQEE | 500W Brushless Hall-Effect-Free Motor Driver Board 12–36V DC 15A Forward/Reverse Speed-Controlled High-Power Controller

Product Features:1. Made from high-quality materials to ensure reliability2. The driver supports forward and reverse switching, with speed control via a potentiometer (typically 10–50 kΩ); speed can also be controlled using a 5 V PWM signal3. Easy to use; the driver board comes with an 18 mm thick heat sink4. Sleek and compact design with neatly arranged components5. Wide range of applicationsProduct Specifications:Input Voltage: DC 12–36 VMaximum Current: 15 AMaximum Power: 500 WNote:When testing the driver, it is advisable to use an adjustable power supply in current-limiting mode to check whether the actual no-load current is abnormal, to prevent the driver from being burnt out by abnormal instantaneous high power.Do not short-circuit the UVW three-phase outputs, as this will damage the driver. When operating at high power, monitor the actual heat generation; if significant heat is generated, install a fan for forced air cooling.The driver does not come with sockets or cables; these must be soldered in place using a soldering iron. You will need to provide your own forward/reverse switch and speed control potentiometer. When soldering, ensure a good ground connection to prevent the driver from being damaged by induced voltage.Package Contents:Motor driver board × 1
