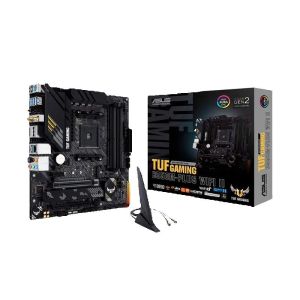

ASUS | ASUS New TUF GAMING B550M PLUS WIFI II AMD B550 micro ATX supports AMD Ryzen 5000 series motherboard socket AM4

ASUS TUF GAMING B550M PLUS WIFI II is a Micro ATX motherboard with AMD B550 chipset, suitable for various AMD Ryzen series processors. The following is its detailed introduction:Main specificationsCPU slot: AM4, supports AMD Ryzen 5000 series, 5000 G-Series, 4000 G-Series, 3000 series desktop processors.Memory slots: 4 DDR4 DIMM slots, supporting up to 128GB, with a maximum memory frequency of 4866MHz (OC), supporting dual channel memory architecture.Expansion slots: 1 PCIe 4.0 x16 slot (supporting x16 mode), 1 PCIe 3.0 x16 slot (supporting x4 mode), 1 PCIe 3.0 x1 slot.Storage interface: 2 M.2 slots, one of which supports PCIe 4.0 x4 and SATA mode, and the other supports PCIe 3.0 x4 and SATA mode; 4 SATA 6Gb/s ports, supporting RAID 0, 1, and 10.Network connection: Onboard Realtek 2.5Gb Ethernet card, equipped with Wi Fi 6 (802.11 a/b/g/n/ac/ax) wireless card, supports 2.4/5GHz frequency band, Bluetooth v5.2.Audio chip: Realtek 7.1 channel surround sound high-definition audio codec, supporting up to 24-Bit/192kHz playback, with audio shielding, rear fiber S/PDIF output port, etc.I/O interface: includes 2 USB 3.2 Gen 2 ports (1 Type-A+1 Type-C), 4 USB 3.2 Gen 1 ports (one of which can be switched to USB BIOS FlashBack), 2 USB 2.0 ports, 1 DisplayPort, 1 HDMI port, 1 Wi Fi module interface, 1 Realtek 2.5Gb Ethernet port, 5 audio jacks, 1 fiber optic S/PDIF output port, 1 BIOS FlashBack button, and 1 PS/2 keyboard/mouse combination port.FeaturesPower supply design: Using 8+2 DrMOS power supply modules, combined with ProCool high-strength power supply interface, military grade TUF components, and Digi+VRM digital power supply control, it can provide stable power supply for the CPU.
