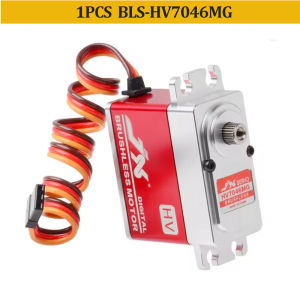

JX Servo BLS-HV7032MG /HV7046MG Brushless Motor Large Torge Full Metal CNC HV Digital Servo for RC Car Helicopter Drone Airplane

Brand:JX Model:BLS-HV7032MG Description:32kg brushless motor HV sevo Pulse width:1000-2000μs=90° Pulse width:500-2500μs=180° Dead band: 2μs    1520μs / 330hz               Motor: Brushless Motor Operating Speed (6.0V): 0.09sec/60° Operating Speed (8.4V): 0.07sec/60° Stall Torque (6.0V): 26.3 kg.cm (364.96oz/in) Stall Torque (8.4V): 32.51kg-cm 451.18 oz/in) Dimensions: 40.5X20.5X36mm Weight:  70.1g (2.47oz) Connector Wire Length: JR  265 mm (10.43in) Bearing: 2BB Model:BLS-HV7046MG Pulse width:1000-2000μs=90° Pulse width:500-2500μs=180° Dead band: 2μs    1520μs / 330hz Motor: Brushless Motor Operating Speed (6.0V): 0.12sec/60° Operating Speed (8.4V): 0.1sec/60° Stall Torque (6.0V): 38.6kg.cm Stall Torque (8.4V): 47.8kg-cm Dimensions:40.5X20.5X36mm/ Weight:  70g (2.48oz) Connector Wire Length: JR  265 mm (10.43in) Bearing: 2BB Teeth:25T Package Included: 1 x Servo 1 x Bag of Accessories
