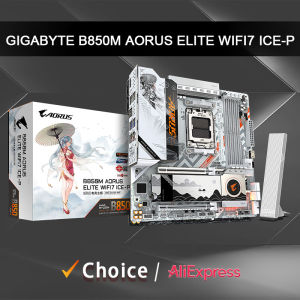

GIGABYTE | GIGABYTE New B850M AORUS ELITE WIFI7 ICE-P Micro ATX AMD B850 Ryzen 9000 8000 7000 Series CPU Socket AM5 Motherboard

GIGABYTE B850M AORUS ELITE WIFI7 ICE-P is an AM5 interface motherboard launched by Gigabyte for the mainstream desktop market, with strong performance and rich functions. The following is its detailed introduction:Basic ParametersSlot type: AM5, supports AMD Ryzen ™ 9000/8000/7000 series processors.Power Supply Design: Adopting a 12+2+2 phase power supply design, paired with a 24 PIN motherboard power supply interface and an 8-PIN CPU power supply interface, to provide stable power for the processor.Memory Slot: Equipped with 4 DDR5 DIMM slots, supporting dual channel memory architecture, capable of supporting up to 128GB (64GB per pin) of memory, with a maximum memory frequency of DDR5 9600MHz (OC).ScalabilityPCI-E slot: It has one PCI-E 5.0 x16 graphics card slot and one PCI-E 3.0 x4 slot, which can meet the needs of high-performance graphics cards and other expansion cards.M. 2 slots: Provide 2 M.2 slots, including 1 PCI-E 5.0 M.2 slot and 1 PCI-E 4.0 M.2 slot, supporting high-speed solid-state drives.SATA interface: Equipped with 4 SATA 6Gb/s interfaces, it can connect to traditional mechanical hard drives or solid-state drives.interface configurationVideo interface: Provides 1 DP interface, supports AMD Radeon ™ Integrated graphics card output, DP interface supports 3840 x 2160 @ 144Hz resolution.USB interface: including 4 USB 2.0 interfaces, 5 USB 3.2 Gen 1 interfaces, 2 USB 3.2 Gen 2 interfaces, and 1 USB 3.2 Gen 2 Type-C ® Interface, there is also a USB-C 20Gb/s interface on the front to meet the connection needs of various external devices.Network interface: Equipped with Realtek 2.5Gbe LAN chip, providing high-speed wired network connection, and also equipped with Wi Fi 7 wireless network card, supporting 2.4/5/6GHz frequency bands, and comes with a high gain antenna for high-speed wireless network connection.Other interfaces: There is also an RGB FUSION interface, including 1 RGB LED socket and 3 ARGB LED sockets, which can be connected to RGB lighting devices to create personalized lighting effects.featured technologyDIY thoughtful design: equipped with Wi Fi quick and easy disassembly, M.2 quick and easy disassembly, graphics card quick and easy disassembly, multifunctional Debug area, Debug LED light, Q-Flash Plus button and other functions, convenient for users to install and debug hardware
