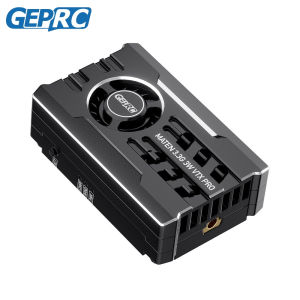

GEPRC MATEN 3.3Ghz 3-8S 40CH 3W VTX Pro CNC Shell MMCX Antenna Interface

GEPRC MATEN 3.3Ghz 3-8S 40CH 3W VTX Pro CNC Shell MMCX Antenna InterfaceFeatures- Operates in the 3.3GHz frequency, up to 3000mW, suitable for long range flight;- The well-chosen high-strength aluminum alloy CNC shell assist heat dissipation;- The built-in micro turbofan dissipates heat actively;- Wide voltage input supports 12-36V input;- One function adjustment buttons, three indicator lights, easy to operate;- VTX control protocol IRC Tramp supports OSD parameter adjustment;- Temperature control protection function prevent overheat;- Supports 40 transmission channels;- Support 2020mm(M2) and 25.525.5mm(M2) two different mounting hole sizes;Specifications- Model: GEPRC MATEN 3.3G 3W VTX PRO;- Size: 5031.517.5mm;- Mounting hole: 2020mm(M2),25.525.5mm(M2);- Output power: 25mW/3000mW/Pit mode;- Frequency: 3083-3480MHz;- Channel: 40CH;- Input voltage: DC12-36V (3-8S Battery);- Output voltage: 5V@600mA;- Protocol: IRC Tramp;- Antenna interface: MMCX;- Cable interface: SH1.0 6pin;- Weight: 37g;Frequency BandsA: 3083，3114，3145，3176，3207，3238，3269，3300B: 3215，3235，3255，3275，3295，3315，3335，3355C: 3170，3190，3210，3230，3250，3270，3290，3310D: 3320，3345，3370，3395，3420，3445，3470，3495E: 3310，3330，3355，3380，3405，3430，3455，3480Includes1 x MATEN 3.3G 3W VTX PRO1 x MMCX to SMA connector1 x sh1.0 6P Connecting cable1 x User manual
