SHCHV | ESP32-S3 2.06 Inch AMOLED Touch Watch Development Board WiFi BT QSPI Interface Dual Digital Microphones Array Xiaozhi AI Bot

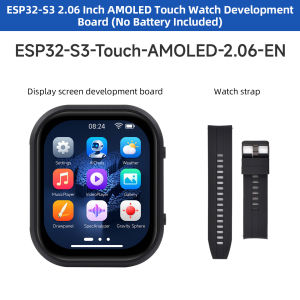

ESP32-S3 2.06inch AMOLED Touch Watch Development Board, 32-bit LX7 Dual-core Processor, 410×502 Pixels, QSPI Interface, Onboard Dual Digital Microphones Array, ESP32 With DisplayESP32-S3 2.06inch AMOLED WatchDevelopment BoardEmbedded with CO5300 Display Driver and FT3168 Capacitive Touch Chip Version OptionsESP32-S3-Touch-AMOLED-2.06-ENStandard version, without Lithium battery ESP32-S3-Touch-AMOLED-2.06Comes with a MX1.25 Lithium battery(can be installed inside the case)FeaturesThe ESP32-S3-Touch-AMOLED-2.06 is a high-performance, wearable watch-style development board designed by Waveshare. Based on the ESP32-S3R8 microcontroller, it integrates a 2.06inch AMOLED capacitive touch display, 6-axis IMU, RTC chip, audio codec chip, power management IC, and so on. Comes with a custom-designed case with a smartwatch-like appearance, making it ideal for prototyping and functional verification of wearable applications.Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequencySupports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antennaBuilt in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 32MB Flash memoryType-C connector, improving device compatibility, easier to useOnboard 2.06inch AMOLED capacitive touch display for clear color picture display, 410 × 502 resolution, 16.7M colorBuilt-in CO5300 display driver and FT3168 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resourcesOnboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.Onboard PCF85063 RTC chip, powered by Lithium battery through AXP2101 chip for uninterrupted power supplyOnboard PWR and BOOT programmable buttons for easy custom function developmentOnboard 3.7V MX1.25 Lithium battery recharge/discharge headerOnboard reserved pads of 1 × I2C, 1 × UART and 1 × USB interfaces, for connecting peripherals and debuggingOnboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit designAdopts AXP2101 IC for efficient power management, supports multiple voltage outputs, battery charging, battery management, and battery life optimization, etc.Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.AMOLED parametersDisplay PanelAMOLEDDisplay Size2.06 inchResolution410 × 502 pixelsDisplay Colors16.7MBrightness600 cd/㎡Contrast Ratio100000:1Communication InterfaceQSPIDriver ICCO5300TouchSupportedTouch ICFT3168Small Size, Touch More PossibilitiesSuitable For Various Smart Device Development, and Can Realize Human-Computer Interaction Function. Supports connecting to a battery for independent operationAdopts AMOLED screenThe next-generation display technology, compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid videos and images178° wide viewing angleExcellent Display Performance, 16.7M color, wide viewing angleOnboard audio codecOnboard ES8311 audio codec chip and ES7210 echo cancellation circuit. Meet daily audio application scenariosSupports offline voice recognition and AI Speech InteractionAllows access to online large model platforms such as DeepSeek, Doubao, etc.Supports ESP-IDF, ArduinoComprehensive SDK, dev resources, tutorials to help you easily get started Wi-Fi and BLE 5 supportESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 ax/b/g/n) with 40 MHz of bandwidth support, Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth MeshWearable DesignDetachable watch straps for easy replacement and convenient matching with different stylesWhat's On BoardPin definitionoutline dimensionsResources & Services Wiki: www.waveshare.com/wiki/ESP32-S3-Touch-AMOLED-2.06Packing List
