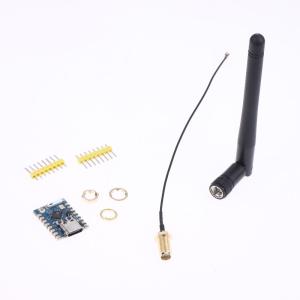

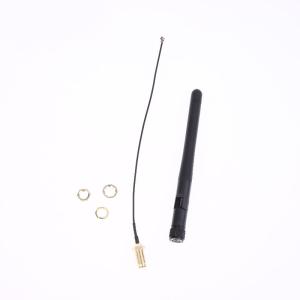

EELHOE | 1 Set ESESP32C3 Wi-Fi BT Module P32 Super Mini Development Board ESP32-C3 With 2.4G WiFi Antenna For IoT ESP-IDE

DescriptionProduct parameters:Material: Plastic+MetalPowerful CPU: ESP32-C3, 32-bit RISC-V single-core processor running up to 160 MHzWiFi: 802.11b/g/n protocol, 2.4GhHz, supports Station mode, SoftAP mode, SoftAP+Station mode, mixed modeBlue-tooth: Bluetooth5.0Ultra-low power consumption: Deep sleep power consumption is about 43μARich board resources: 400KB , 384KB ROM and built-in 4M flashChip model: ESP32C3FN4Ultra-small size: as small as thumb (22.52x18mm) Classic form factor for wearables and small projectsRobust security features: Crypto hardware accelerator supporting AES-128/256, hashing, RSA, HMAC, digital signatures and secure bootRich interfaces: 1xI2C, 1xSPI, 2xUART, 11xGPIO(PWM), 4xADCSingle-sided component, surface mount designOnboard LED blue light: GPIO 8 pinsIf external power supply is required, simply connect the external power supply+level to the 5V position and connect the GND to the negative pole. (Supports 3.3-6V power supply).Note: when connecting to an external power source, USB cannot be connected, and only one can be selected between USB and external power supply.Enter download mode: Press and hold the BOOT button of ESP32C3, then press the RESET button, release the RESET button, and then release the BOOT button. At this point, ESP32C3 will enter download mode. (Every time you connect, you need to re-enter the download mode. Sometimes, if you press it once, the unstable port will disconnect, which can be determined by identifying the sound through the port.)Package includes:1 X ESP32C3 Mini Development Boardor1 X 2.4G WiFi Antennaor1 X ESP32C3 Mini Development Board1 X 2.4G WiFi AntennaNote:1. The color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. Please refer to the actual product received.2. Please allow slight manual measurement deviation for the data.
