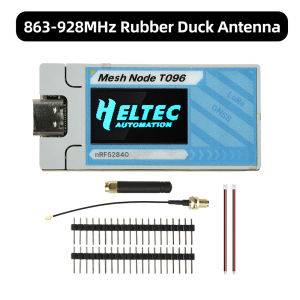

Tracker Mesh Node T096 nRF52840 LoRa Chip Ultra-low Power BLE GNSS 28±1dBm Meshtastic MeshCore Development Board 863~928MHz

Features:1. Equipped with an nRF52840 main controller, integrating Bluetooth 5.0 and Bluetooth Mesh.2. Supports LoRa high power (28±1dBm) with high receiver sensitivity.3. Dual-frequency multi-mode satellite positioning, supporting BeiDou global navigation.4. Ultra-low power design with built-in lithium battery charge/discharge management.5. GNSS chip enables global positioning, suitable for centralized mesh networks, remote sensing, and other applications.Product Introduction: The Mesh Node T096 is a low-power development board integrating Bluetooth, LoRa, and GNSS. Its core uses the nRF52840 MCU, providing powerful processing capabilities and Bluetooth connectivity, while the SX1262 LoRa transceiver with integrated PA provides 28±1 dBm transmit power, ensuring excellent communication range and link reliability. The UC6580 GNSS chip enables precise global positioning, making this device ideal for decentralized mesh networks, asset tracking, and remote sensing applications.The Mesh Node T096 utilizes Laser Direct Shaping (LDS) technology to design GNSS and Bluetooth antennas, achieving a compact, durable, and efficient antenna solution. Designed for low-power operation, it is ideal for battery-powered deployments. The Mesh Node T096 fully supports the ARD development environment and is compatible with open-source mesh networking projects such as Meshtastic and MeshCore, providing developers and enthusiasts with a versatile, out-of-the-box platform for building resilient and scalable mesh networks.Key Features:Supports Bluetooth, LoRa, and GNSS communicationUltra-low power consumptionMaximum output power up to 28±1dBm, low noise amplifier (LNA) can be bypassedSupports GPS, GLONASS, BeiDou (BDS), Galileo, NAVIC, and QZSSIntegrated lithium battery management system (charge/discharge management, overcharge protection, battery level detection, automatic switching between USB and battery power)USB-C interface with complete voltage regulation, ESD protection, short circuit protection, and RF shieldingSupports example development frameworks, providing LoRa/LoRaWAN sample programsCompatible with Meshtastic and MeshCoreProduct Specifications:MCU (Microcontroller): nRF52840LoRa Chip: SX1262GNSS Chip: UC6580 (L1+L5 dual-band)Frequency: 863~928MHzMaximum transmit power: 28±1dBmBluetooth Low Energy: Bluetooth 5.0, supports Bluetooth Mesh NetworkingHardware Resources: USB 2.0, 2 LEDs, 2 Buttons, 4 SPIs, 2 TWIs, 2 UARTs, 4 PWMs, QSPI, I2S, PDM, QDEC, etc.Interfaces: Type-C USB, 1.25-2P Lithium Battery Connector, 1.25-2P Solar Panel Connector, LoRa Antenna (IPEX 1.0), GNSS Antenna (IPEX 1.0), 2 Rows of 13-Pin 2.54mm Pitch HeaderPower Supply: USB-C 5VLithium Battery: 3.7V (3.3-4.2V)Operating Temperature: -20 ~ 70℃Dimensions: 52.00 × 25.40 × 10.26 mmProduct List:1 Development Board2 18-Pin Header Headers2 2-P Terminal Cables1 Antenna
