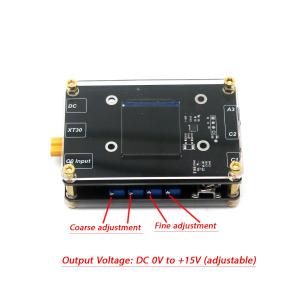

Digital Display 2A 4x LT3045 Low Noise Linear Regulator 0-15V Adjustable For Audio DAC & RF signal Filter switch Power Supply

LT3045 2A Low Noise Linear Regulator Module | LCD Display | 4x Parallel Design | 0.8μV Noisetest video Product DescriptionProfessional-grade low-noise linear regulator module featuring four LT3045 ICs in parallel configuration to deliver 2A output current with exceptional 0.8μV RMS noise performance. This advanced module combines high PSRR (120dB), precision voltage adjustment, and comprehensive protection circuits in a compact package with multiple input options and LCD monitoring.Key FeaturesUltra-Low Noise: 0.8μV RMS typical output noiseHigh Current Output: 2A continuous via 4x LT3045 parallel configurationExcellent PSRR: 120dB power supply rejection ratioMultiple Input Options: XT30, DC5521, and Type-C interfacesPrecision Adjustment: Coarse/fine tuning potentiometers with LCD feedbackComprehensive Protection: Reverse polarity and safety circuitsTechnical SpecificationsInput Voltage: DC +3V to +20VOutput Voltage: DC 0V to +15V (adjustable)Output Current: +2A maximumDropout Voltage: +0.7V typicalOutput Accuracy: 0.01V resolutionNoise Performance: ~0.8μV RMS (minimum)PSRR: 120dB typicalQuiescent Current: Line Regulation: ±0.02% (2A, 0-2000mV change)Load Regulation: ±0.3% (5V, 0-2A change)Dimensions: 80×53×25mmVoltage Adjustment System4 Precision Potentiometers (left to right):Coarse adjustment (primary range)Coarse adjustment (secondary range)Fine adjustment (primary precision)Fine adjustment (secondary precision)Adjustment Procedure:Monitor LCD display during adjustmentAdjust coarse pots to approach target voltageUse fine pots for precise voltage settingDisplay ModesDigital Readout: Precise voltage/current valuesCurve Display: Graphical representation of output characteristicsMode Switching: Panel button toggles between display formatsInterface OptionsXT30: High-current connection for power applicationsDC5521: Standard barrel connector compatibility Spport 5525Type-C: Modern USB-C power inputTerminal Blocks: Additional connection flexibilityApplicationsHigh-precision laboratory power suppliesAudio equipment power conditioningRF and communication system powerTest and measurement equipmentSensitive analog circuitryMedical and scientific instrumentsInstallation GuidelinesInput Selection: Choose appropriate input connector for power sourceVoltage Setting: Use coarse/fine pots with LCD monitoringLoad Connection: Ensure proper current capacity for 2A maximumHeat Management: Consider heatsinking for continuous high-current operationPerformance AdvantagesParallel Design: Four LT3045 ICs provide current sharing and thermal distributionLow Impedance: Optimized filtering for superior transient responseVisual Feedback: Real-time LCD monitoring of output parametersFlexible Integration: Multiple interface options for various applicationsPackage IncludesLT3045 regulator module
