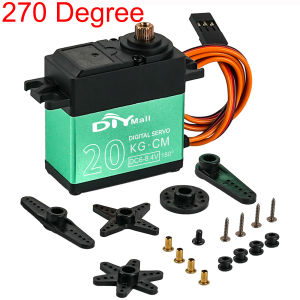

20kg.cm Digital Servo Metal Gear High Torque Speed 180/270/360 Degree PWM Model RC Servos 6V-8.4V for Drone Robot Car Aircraft

Descriptionit has 180 Degree Angle controllable Servo, 270 Degree Angle controllable Servo and 360 Degree Continuous Rotation Servo , please choose the model that you need.Description:Storage Temperature Range: -30°C～80°COperating Temperature Range: -25°C～70°CTemperature Range: -25°C～70°CHumidity Range: 65%±10%Size: 402041.5mmWeight: 72g±5%Gear type: MetalLimit angle: 180°Bearing: 2BBHorn gear spline: 25T OD:5.9mmHorn type: Plastic, POMCase: Engineering plastics(PBT)+Aluminum alloyConnector wire: 300mm±5mmMotor: Carbon brush motorSplash water resistance: yesOperat voltage: 4.8V-8.4VIdle current: mANo load speed: 0.18sec/60°-0.14sec/60°Running current: 160mA-170mAPeak stall torque: 20.5kg.cm-22.8kg.cmStall current: 1800mA±10%-2200mA±10%Working voltage range: 4.8-8.4VCommand signal: Pulse width modificationAmplifier type: Digital controllerPulse width range: 500～2500usecNeutral position: 1500usecRunning degree: 180°±3°(when 500～2500usec)Dead band width: 5 usecRotating direction: Counterclockwise (when 1000～2000usec)Note:Transmitter only can generate 1000-2000us, the Angle 180/270 which request pwm signal width 500-2500us, if you use a transmitterto control them, the angle will be 90Package Includes:1 X Waterproof 15KG Digital Coreless Servo (360° , if you need 270°/180° or Steering wheel in other colors , contact me freely )The logo of DIYmall and TIANKONGRC is send by random
