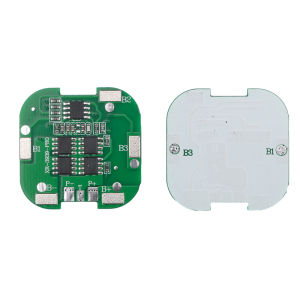

4S 14.8V Lithium Battery Protection Board Common Port BMS 8A Continuous Discharge 20A Short-Circuit Temperature Protection

4S 14.8V Lithium Battery Protection Board (BMS) – Common Port, 8A Continuous Discharge, 20A Peak/Short-Circuit Protection, Temperature Protection

Product Features:

1. High-quality materials ensure reliable performance
2. Compact, refined design with an organized component layout
3. Includes wire-breakage protection and temperature protection functions
4. Uses a single integrated circuit for enhanced stability
5. Wide range of applications; ideal for DIY electronics enthusiasts

Specifications: Wiring Configuration: Common port Single-cell over-discharge voltage: 2.7V ± 0.08V Continuous operating current: 8A Instantaneous protection current: 20A Over-current recovery condition: Resume charging or disconnect load Short-circuit recovery condition: Resume charging or disconnect load Single-cell over-charge voltage: 4.25V ± 0.025V Continuous charging current: 6A Charging over-current protection: 10A Charger voltage: 16.8V (recommended) Charging over-temperature: High temp 60°C, Low temp 0°C Discharging over-temperature: High temp 80°C, Low temp 0°C Operating power consumption: ≤20µA Temperature range: -40°C to +80°C Wire-breakage protection: Yes

Package Contents: 4S Lithium Battery Protection Board x1
