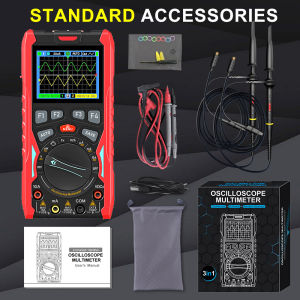

ET853C Dual Channel Oscilloscope Multimeter Signal Generator 70MHz Type-C Rechargeable Battery Intelligent Anti-burn Protection

Feature:Dual-channel Oscilloscope + Multimeter + Signal Generator 3-in-1 70MHz analog bandwidth with 200Msps high-speed sampling rate20,000-count true RMS multimeter, AC DC current, AC DC voltage, resistance, capacitance, diode, buzzer, Duty Cycle, frequency12 Waveform Parameter Measurement：Vpp, Vp, Vmax, Vmin, Vavg, Vrms，Freq, Period, +Width, -Width, +Duty, -DutySupport square wave, sine, triangle wave signal outputs and output amplitude adjustable.Built-in rechargeable 18650 battery 2000mAh, detachable design for easy battery replacement, battery life of about 4 hoursCan store 1000 sets of multimeter data and 200 sets of waveform signalsIntelligent anti-burn, overload protection with dual fuses (200mA/10A）for enhanced instrument safetyGeneral CharacteristicsDisplay: 320x240 TFT color screenBacklight Brightness: AdjustableBattery: 18650 lithium batteryContinuous Use Time: Approx. 4 hoursCharging Standard: 5 VCharging Port: Type-CInput Impedance:10MΩAuto Sleep:5-60 minutes or disabledStorage Capacity:1000 DMM records, 200 0sCwaveform recordsStorage Conditions:-10℃~+60℃;Operating Environment: 0℃~+40℃;Dimensions: 83 mm x 160 mm x 32mmWeight: About 220gOscilloscope SpecificationsAnalog Bandwidth: 70 MHz (single channel), 40MHz(dual channel)Maximum Equivalent Sampling Rate: 200MspSNumber of Channels: 2Input Impedance: Approx. 1MΩTime Base Range: 6ns/div~50s/divTime Base Accuracy: ±(0.01% + 0.1div)Vertical Sensitivity Range:  50 mV/div to 10 V/div at MCX inputVertical Amplitude Accuracy : ±(5%+ 0.2div)Scan Modes: Auto/Normal/SingleTrigger Edge Selection: Rising/ FallingCoupling Modes: DC/ACAuto Setup: Automatically sets time base and vertical amplitudeVoltage Measurement Parameters: Vp、Vmax、Vmin、Vpp、Vavg、VmsTime Measurement Parameters: Freg、Period、+Width、-Width、+Duty、-DutySignal Generator SpecificationsOutput FrequencySine Wave: 10Hz to 100kHz (stepped in 1-2-3-5 sequence)Triangle Wave: 10Hz to 100kHz (stepped in 1-2-3-5 sequence)Square Wave: 10Hz to 3MHz (stepped in 1-2-3-5 sequence)Output Amplitude: 3Vpp、2Vpp、1Vpp、0.5Vpp、0.2Vpp、0.1Vpp、0VppMultimeter SpecificationsDC Voltage: 20.000mV/200.00mV/2V/20V/200V/1000VAC Voltage(True RMS):20.000mV/200.00mV/2V/20V/200V/750VDC Current:200.00uA/2000.0uA/20.000mA /200.00mA/2A/10AAC Current(TrueRMS):200.00 uA/2000.0uA/20.000mA /200.00mA/2A/10AResistance:200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ(Values above 50MΩare for reference only)Capacitance:9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mFFrequency:1.000Hz~20.000MHz(Above 20M for reference only)Diode Test:Open-circuit voltage approx.3V, maximum test current approx.2mAContinuity Test: Threshold resistance approx. 50ΩFuse Ratings:200mA/250V, 10A/,125VPackage List:1 x Oscilloscope2 X Probes1 x One Pair Test Leads1 X USB Cable1 X English User Manual
