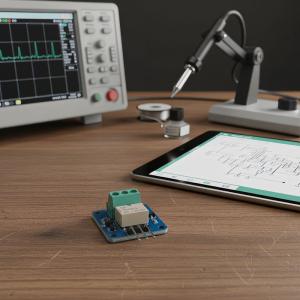

HFD4/3-S Thin Profile Relay Module 3.3V 5V Durable Construction Compatible with STM32 51 Microcontroller for Robotics Projects

Description1. The relay supports wide voltage supply, the range is 3.3V-6V.2.The maximum load current of the controlled terminal of the relay is 2A@30V, 0.5A@220V (more than 60V, it is recommended to add an insulation protection box to prevent electric shock).3. Small size, adapted to signal switching or on-off control, signal insertion loss Operating current (VCC): quiescent current: 5uA action current: 40mATrigger mode (IO): high level triggerTrigger level (IO): high level: greater than 1.3V less than VCC low level: less than 0.5VTrigger current (IO): 1.8mAMaximum load: 2A@30VDC, 0.5A@220VACPackage quantity:1PcNote:Please allow 2%-3% differences due to manual measurement. The above dimensions are for reference only.As different computers display different colors, thank you for your understanding, the actual product color may be slightly different from the image
