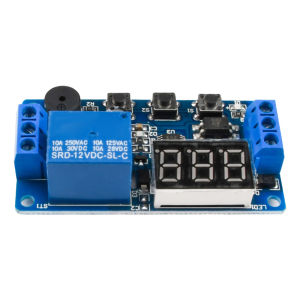

Aideepen | DC12V Delay Timer Relay Module Buzzer Alarm LED Digital Time Delay Relay Antireverse Protection Trigger Cycle Timer Delay Switch

Features: 1. Supports DC12V working voltage and has strong adaptability. 2. High level trigger, input range DC4V~20V, suitable for various signal sources. 3. The maximum control capability reaches 30V/5A, meeting the requirements of DC or AC loads. 4. Built in anti reverse protection and optocoupler isolation ensure stable and reliable operation. 5. Long service life, signal input optocoupler isolation, strong anti-interference ability.Parameter: Model: DK-C-01 Working voltage: DC12V (normal working voltage DC10V~16V) Source: High level, DC4V~20V (positive trigger common power button, PNP sensor, PLC signal, etc.). Output capability: You can control DC or AC 220V/5A within 30V/5A Static current: 20mA Working current: 50mA Working temperature: -40~85 ℃ Size: 64.2mm * 34.8mm * 18.5mm Features: Anti reverse voltage input circuit, worry free wiring. Signal input optocoupler isolation, strong anti-interference ability. Set parameters for power supply and permanent storage.Function: S1: Power on, press S12 seconds to enter the mode selection menu, press S1 to select P-1~P-4 modes. S2: OK/Shift key: Press to adjust the position of the LED flashing, which LED is flashing, and S3 to adjust the value of the digital tube flashing. Before pressing S2, the numbers will no longer flash. S3: The number display flashes, and S3 adjusts the number to change from 0 to 9 in sequence. Normal digital display, S3 adjusts the position of the decimal point. The decimal point in units represents 0 to 999 seconds, in tens represents 0 to 99.9 seconds, and without a decimal point represents 0 to 999 minutes. Description: P-1: Upon receiving a trigger signal, the relay opens, the timer expires, and the relay closes. A1: Invalid again during delayed triggering period A2: During the rescheduling delay triggering period A3: Delay triggering again during the termination timing relay reset period P-2: Receive trigger signal, start time X, end of counting relay, start time Y, end of counting relay P-3: Loop switching mode A1: After turning on the power relay, the timer ends with an infinite loop. A2: After the power relay is turned off, the timer ends with an infinite loop.Package Include: 1* relay module (optional with or without casing)
