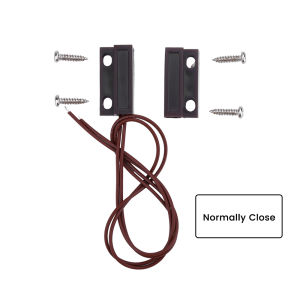

MC-38A Magnetic Switch Wired Door Window Sensor Detector Magnetic Switch NC/NO for Home Urban Security Alarm System

Product Features:1. The product is compact and easy to install2. Stable performance and long service life3. Not easily broken, with characteristics such as compression resistance, impact resistance, and corrosion resistance4. A switch mainly composed of a switch and a magnet. The door magnetic switch has a small size and is suitable for various door types5. Wide range of applications: suitable for urban security, widely used in home furnishings, hotels, shopping malls, hospitals, warehouses and many other fields for door and window installation and useProduct Parameters:Model: MC-38Color: Coffee colorAppearance size: 27 * 14 * 8 mmAction distance: 16mm ± 8mmSwitch withstand voltage: 100VDCLoad current: 100mA (maximum value, customizable)Switch output: normally closedWire: 24 Awg, approximately 350mm in lengthSurface mounted, suitable for installation on non-ferrous doors or windowsModel: MC-38AColor: Coffee colorSwitch withstand voltage: 60VDCLoad current: 150mAAppearance size: 27 * 14 * 8 mmAction distance: 18mm ± 10mmWire: 24 Awg, approximately 350mm in lengthSwitch output: normally open (normally open: close the open circuit when the magnet is close)Installation method: SMD (using screws or double-sided tape)Application suggestion: Wooden doors and windowsNote:There are two types of reed switches: "normally open" reed switches and "normally closed" reed switches. When there is no magnet near the switch, the metal spring on the normally open switch remains open. In the presence of a magnetic field, the contacts of a normally open reed switch will close. The normally closed reed switch closes when not close to the magnet; When the magnet approaches it, the normally closed switch will openShipping List:Door magnetic switch * 2Screw * 4
