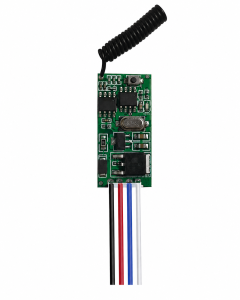

FUNNYSHIELD DC 6V 12V 18V 24V Remote Control Switch 433MHz RF Relay Module 1000m Transmitter for Motor Forwards Reverse Stop DIY

Working voltage: DC 3.6V~24VMaximum load: 2AStatic current: Working frequency: 433MHzReception sensitivity:Mini size support coding format 1527 learning codeInput: DC 3.6V ~ DC 24VOutput: DC 3.6V ~ DC 24VModulation mode: ASK (superheterodyne)Number of stored remote controls: ≤ 5Working mode: Momentary, Toggle, Latching ModeLearning style: Learning ButtonWorking temperature: -20 degrees 80 degrees.Clear the code: (clear the code before switching modes)Press the learn code button 8 times, and the LED will go out. The LED flashes 5 times, and the OK is cleared.(If you need to change the working mode of the same remote controller, please clear the code before learning.)Learn to check the code:1. Clear codePress the learning key on the module eight times continuously, and the indicator light will flash six times quickly.Then put it out. Clear the code successfully. All the remote controls that can be controlled before are invalid.2, inching modeClick the learn button once, and the LED will be on after flashing once. Press the button that the remote controller wants to control.Press the key, and the LED light flashes three times, and the learning is successful.3. Self-locking modePress the Learn button twice, and the LED will be on after flashing once. Press the button that the remote controller wants to control.Press the key, and the LED light flashes three times, and the learning is successful.4. Interlock modePress the Learn button for 3 times, and the LED will be on after flashing once. Press the button that the remote controller wants to control.Press the key, and the LED light flashes three times, and the learning is successful.5, inching delay modeClick the Learn button for 4 times, and the LED will be on after flashing for 4 times. Press the button that the remote controller wants to control.Press the key, the LED light flashes three times, and the learning point is delayed for 5 seconds. Press the learning button for 5 times, and the LED will always turn on after flashing for 5 times. Press the button that the remote controller wants to control, and the LED will flash for 3 times, and the learning inching will be delayed for 10 seconds. Press the learning button for 6 times, and the LED will always turn on after flashing for 6 times. Press the button that the remote controller wants to control, and the LED will flash for 3 times, and the learning inching delay will be 15 seconds. Press the learning button for 7 times, and the LED will always turn on after flashing for 7 times. Press the button that the remote controller wants to control, and the LED will flash for 3 times, and the learning inching delay will be 20 seconds.
