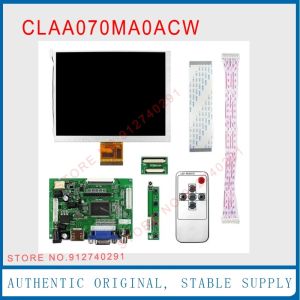

Original 7 Inch 800*600 4:3 LCD Screen CLAA070MA0ACW LCD Display Screen Compatible HDMI VGA Control Driver Board Monitor Panel

LCD Controller Board:HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen50Pin TTL Connector for 7inch~10.1inch LCD ScreenInput Power Adapter:12Vdc More than 2A.Come In Standby Model When Not Input SignalStandby Model Video Input: HDMI VGA AV1 AV2Reversing: SupportAutomatically Switch To AV2 When Connector ACC to 12VOSD: Brightness Contrast Auto Language And So OnLanguage:English French German Spanish Italian And So OnBoard Size:91mm x 66mm x 12mm7" LCD Screen CLAA070MA0ACW :Display Mode N, Normally White, TransmissiveResolution 800RGB)×600Outline Size 154 × 119.2 × 5.4 (H×V×D)Display Area 141.6 × 106.2 (H×V)Brightness 250 cd/m² (Typ.)Contrast Ratio 500:1 (Typ.) (TM)Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]Signal Interface TTL (1 ch, 6/8-bit) , FPC , 60 pinsBacklight WLEDInput Voltage  3.3/9.6/18/-6V (Typ.)(VCC/AVDD/VGH/VGL) 1
