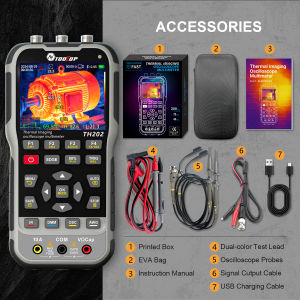

TOOLTOP 2CH Digital Oscilloscope 80MHz 256*192 25Hz Thermal Imager 20000 True RMS Multimeter Industrial Pipeline Maintenance

Note:1. In order to correct non-uniformity, a mechanical control calibration plate is installed in front of the thermal imaging detector, which will be calibrated every 10 seconds to ensure more accurate measurements. This is a thermal imaging detector undergoing calibration work, which usually experiences a lag of about 1-2seconds. This is a normal phenomenon, so please don't worry.2. Macro lens installed for PCB inspection at about 3 cm. For distances beyond this, use normal thermal imaging; otherwise the image will be blurred.3. Mute setting: Select 【OSC】 or 【DMM】 mode, then press the 【MENU】 key, select Beep function and turn it off.Features:Professional 256x192 Thermal Imager- 256x192 resolution 25Hz thermal imaging sensor- With macro lens for 3cm close-range PCB inspection- Real-time temperature profile recording improves inspection efficiency2 channels Oscilloscope80MHz analog bandwidth, 200MSa/s high-speed sampling, 12 customizable waveform parameters (such as time base), making circuit debugging more efficient.20,000 Counts True-RMS MultimeterSupports voltage/current/resistance/capacitance/frequency/duty cycle/diode/continuity and relative value measurements ,minimizes lead resistance and interference for more reliable results.3.2 Inches Large Display320x240 resolution, wide-view TFT color screen with 8 levels brightness adjustable. Readouts and waveforms are clear at a glance.4GB Built-in StorageStores up to 2,000 data multimeter sets or 2,000 waveforms and supports saving thermal images and videos analysis.Facilitating experimental recording and data analysis.3000mAh Lithium BatteryRechargeable battery with a long battery life of approximately 5 hours, perfect for field measurements.Specifications:Thermal Imager ParametersSensor Type: VOx (Vanadium Oxide)Thermal Resolution: 256x192Image Capture Rate:25HzTemperature Range: -20°C~+550°CMeasurement Accuracy:±2°C or ±2%Emissivity: 0.01~0.99Palette: White Hot, Black Hot, Fusion1, Fusion 2, lron 1, lron 2,Deep Blue, Color 1, Color 2.Lava, Rain, Green, Red Hot.Deep PurpleField of View(FOV):50.0°(H)x37.2°(V)Focus:3.5mm (fixed, non-adjustable)Measurement Points: 5(center,highest,lowest,area max, area min)lmage Format:JPG (photo), AVl (video)Storage Capacity:TF cardOscilloscope ParametersAnalog Bandwidth: 80MHz(Single Channel),40MHz(Dual Channel)Maximum Sampling Rate:200MSa/sChannels:2Storage Depth: 2KVertical Resolution: 8 bitsCoupling Mode:DC、ACInput lmpedance: Approx.1MΩTrigger Mode:Auto、Normal、 SingleTrigger Edge Selection:Rising / Falling edgeVertical Sensitivity Range: 10mV/div-10V/divVertical Accuracy: ±(5%+ 0.2div)Voltage Measurement Parameters:Vp-p、Vp、Vmax、Vmin.Vavg、VrmsTime Measurement Parameters:Freg、Period、 +Width、-Width、+Duty、-DutyNon-Linearity: ±1 bitAttenuation:Vertical ±4.0, Horizontal ±6.0Time Base Range:6ns/div-50s/div. adjustable in 1-2-5 stepsHorizontal Accuracy: ±(0.01% + 0.1div)Automatic Measurement Accuracy: ±(5%+ 0.2div)Multimeter ParametersDisplay: 20000 CountsDMM Measurement Speed: 3 times/secondDC Voltage: 200.00mV/2.0000V/20.000V/200.00V/1000.0VAC Voltage(True RMS):200.00mV/2.0000V/20.000V/200.00V/750.0VDC Current: 2000.0mA/10.000AAC Current(TrueRMS):2000.0mA/10.000AResistance:200.00Ω/2.0000kΩ/20.000kΩ/200.00kΩ/2.0000MΩ/20.000MΩ/200.00MΩCapacitance:9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mFFrequency:9.999Hz-9.9999MHz (input ≥ AC 500mVp-p; higher frequency requireshigher input voltage)Diode Test:Open-circuit voltage approx.3V, maximum test current approx.2mAContinuity Test: Buzzer sounds atAuto Range Switching: Applicable to all measurement functionsOverrange Indication： O.L(Over load)Dynamic Data Window: Continuously refreshes to display real-timemeasurement dataFuse :10A/250VSignal Source ParametersWaveform FrequencySine Wave:10Hz-100kHz(1-2-3-5 step mode)Triangle Wave:10Hz-100kHz(1-2-3-5 step mode)Square Wave:10Hz-4MHz (5MHz for reference only)(1-2-3-5 step mode)Square Wave Duty Cycle:10%-90%(adjustable in 10% increments, 1-2-3-5 step mode)Output Voltage: 3Vpp (output impedance approx.50Ω)Other ParametersDisplay: 320x240; 3.2-inch TFT color screenBacklight Brightness: 1-8 levels adjustableBattery: 3000mAh rechargeable lithium batteryLow Battery Indicator: SupportOperating Time: About 5 hoursOperating Environment: 0℃~+40℃; Overall Dimensions: 173mmx89mmx38mmSilent Mode: SupportedAuto Power-off: 5min-60min or disabledPower : DC5V/2A ( charger not Included)Storage Capacity: DMM: 2000 records; OSC: 2000 waveformsStorage Environment: -10℃~+60℃; Weight: 296g/10.4 0z (0.65 lb)(excluding accessories)Package List:1 x Thermal Imager Oscilloscope2 x Oscilloscope Probes1 x One Pair Test Leads1 x BNC to Alligator Clip Cable1 x USB Cable1 x EVA Bag1 x English User Manual
