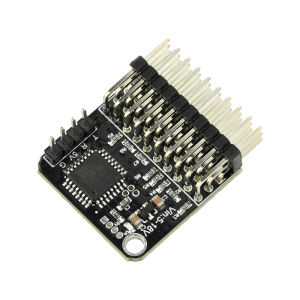

Aideepen | DC 5-18V 8-Channel 50Hz Signal Converter PWM Conversion Module Suitable For FPV Unmanned Aerial Vehicle Receiver

Features:1. Supports automatic protocol conversion for multiple protocols, ensuring strong compatibility.2. Wide voltage input range of 5-18V for stable operation across diverse power environments.3. Compatible with high-frequency heads to enable control via traditional remote controllers.4. Blue LED status indicators provide real-time signal connection feedback for intuitive operation.5. Zero-latency real-time conversion ideal for high-speed response scenarios like FPV drones.Product Specifications:Input Voltage: DC 5-18VSupported Protocols: CRSF/PWM/SBUS/PPM (automatic protocol conversion)PWM Channels: 8 channels (50Hz)LED Indicators:Blue LED flashing: No input signal connectedBlue LED steady: Input signal connectedInterface Description:Voltage: 5-18VRX: CRSF InputTX: CRSF OutputIO1: SBUS Input or PPM Input/PPM OutputIO2: SBUS Output or PPM OutputUsage Instructions:By default, the module's PWM interface outputs channels 1-8. If points B and G (circled in the left diagram) are shorted, the PWM stage outputs channels 9-16.By default, the module's SBUS interface inputs and outputs standard SBUS (inverted). If points A and G in the circle on the left are shorted, the SBUS interface will input and output non-inverted SBUS (for compatibility with some non-standard SBUS interface devices).Product Description:This module enables remote controllers with PPM/SBUS/PWM protocols to connect to ELRS transmitters.The PPM protocol training port of RC controllers can be connected to this module.SBUS protocol remote controllers can be used with this module (requires connection to an SBUS receiver).ELRS communication model aircraft remote controllers (firmware version 3.0 or higher) can connect to this module. This module can also be used to connect to an ELRS transmitter, enabling SBUS/PWM/PPM remote controllers to connect to the ELRS transmitter to control ELRS communication-based receiver devices, such as FPV drones.Additional Notes:- PWM Protocol Input: Real-time conversion and output of SBUS protocol (inverted), CRSF protocol, and PPM protocol. (Zero latency)- PPM Protocol Input: Real-time conversion and output of SBUS protocol (inverted), CRSF protocol, and 8-channel PWM protocol. (Zero latency)-SBUS Protocol Input: Real-time conversion and output of CRSF protocol, PPM protocol, and 8-channel PWM protocol. (No delay)-CRSF Protocol Input: Real-time conversion and output of SBUS protocol (inverted), PPM protocol, and 8-channel PWM protocol. (No delay)Product Listing:1X Module
