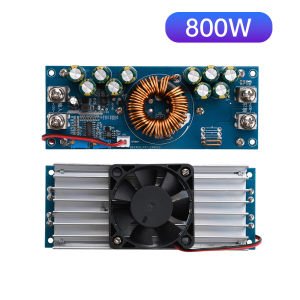

GAQQEE | DC-DC Adjustable Step-Down Power Supply Module 1500/1200W/800W Step-Down Power Supply Modules DC 15V–90V to DC 2.5V–72V

800W 28A/1200W 50AProduct Features:1. Supports a wide range of input voltages, making it suitable for various types of power supply systems and enhancing the module’s versatility and flexibility2. Utilises high-quality electronic components that have undergone rigorous testing to ensure long-term stable operation, making it suitable for industrial environments requiring high reliability3. Features a constant-current output function to maintain stable output current, making it suitable for applications requiring a constant current4. Supports a continuous current output of 25A, ensuring stable operation even under high loads5. Capable of delivering high output power, making it suitable for applications requiring a high energy supply, such as industrial equipment, power tools and laboratory equipmentProduct Specifications:Module Name: 800W Buck Constant-Current Module / 1200W Buck Constant-Current ModuleModule Type: Non-isolated buck moduleInput Voltage: 15–90VOutput Voltage Range: 2.5–72V (must satisfy the buck conversion condition; IN × 0.8 equals the maximum output voltage)Minimum Output Voltage: 2.5VMaximum Output Voltage: 72V (when the input voltage is 90V); the input voltage multiplied by 0.8 equals the output voltage (for example, if the input is 40V, 40V × 0.8 = 32V, so the maximum output voltage is 32V; if the input is 90V, 90V × 0.8 = 72V)Constant Output Current: 800W: 1.5–28A continuously adjustable / 1200W: 2–50A continuously adjustableMaximum output power: 800W/1200W (the operating environment must be well-ventilated)Continuous rated power: 700W/1000W (in a well-ventilated environment)Continuous rated current: 25A/40A (in a well-ventilated environment)Maximum output current: 28A/50ACooling method: Air-cooledInput reverse polarity protection: None (reverse polarity connection is strictly prohibited)Input under-voltage protection: NoneInput over-voltage protection: None (over-voltage is prohibited)Operating temperature: -10 to +65°COperating frequency: 80 kHzConversion efficiency: Up to 97% (efficiency depends on input and output voltage, current, and voltage difference)Short-circuit protection: Yes (constant current protection)Cooling method: Air-cooled (temperature-controlled fan, activates at approximately 45°C)Output back-feed protection: None (when charging batteries or connecting to inductive loads, such as motors, a back-feed protection diode must be fitted)Voltage and current adjustment method: (using a multimeter and a flat-bladed screwdriver)Voltage adjustment: Turn the blue ‘CV’ potentiometer on the power supply board to the required voltage; turning clockwise increases the output voltage, whilst turning anticlockwise decreases it. The maximum output voltage is approximately 20% lower than the input voltageOutput current adjustment: Set the multimeter or ammeter to the 50A, 20A or 10A range. Set the power supply voltage to 5V. Turn the constant current potentiometer ‘CC’ anticlockwise by approximately 10 turns to set the current to the minimum value, then short-circuit the output with the multimeter. Next, turn the ‘CC’ potentiometer clockwise to adjust the current to the required value. (Note: When the constant-current potentiometer ‘CC’ is turned anticlockwise by 10 turns, the power supply may have no output voltage; this is because the current has been set to 0A. Do not be concerned by this; turning the potentiometer clockwise to increase the current will restore the output.)Package Contents:Step-down power supply × 11200W 30A/1500W 50AProduct features:1. Input voltage 15V–90V, output voltage 2.5V–72V, suitable for a wide range of power supply and equipment requirements2. Supports a maximum power output of 1200W/1500W, suitable for high-power equipment, ensuring a stable power supply3. Supports 25A/45A constant-voltage output, ensuring stable output voltage, suitable for scenarios with strict voltage requirements4. Adjustable output voltage, flexibly meeting the needs of different application scenarios and enhancing ease of use5. High-efficiency step-down conversion reduces energy loss, improves system efficiency and minimises heat generationProduct Specifications:Module Type: Non-isolated buck module (BUCK)Input Voltage: DC 15–90 V (10–15 V input is also supported; the ‘12–15 V’ terminals must be short-circuited to allow only 10–15 V input; input voltages exceeding 15 V will damage the module; short-circuiting the ‘10–15 V’ terminals will render the ON/OFF function inoperative)Output Voltage: 2.5–72 V (must satisfy the step-down condition; the input voltage multiplied by 0.8 equals the maximum output voltage)Minimum Output Voltage: 2.5 VMaximum Output Voltage: 72 V (when the input voltage is 90 V); the input voltage multiplied by 0.8 equals the output voltageMaximum Output Power: 1200 W/1500 W (the operating environment must be well-ventilated, with an output voltage of 50 V or above)Continuous rated power: 1000W/1200W (in a well-ventilated environment)Continuous rated current: 25A/45A (in a well-ventilated environment)Maximum output current: 30A/50ACooling method: Air-cooledInput reverse polarity protection: None (reverse polarity connection strictly prohibited)Input under-voltage protection: NoneInput over-voltage protection: None (over-voltage prohibited)Output ON/OFF switch interface: Yes (user-wired)Operating temperature: -10 to +65 °COperating frequency: 80 kHzConversion efficiency: Up to 97% (efficiency depends on input and output voltage, current, and voltage difference)Short-circuit protection: None (current can be limited to 30A/50A)Cooling method: Air-cooled (temperature-controlled fan, activates at approximately 45°C)Output back-feed protection: None (when connecting to inductive loads, such as motors, a back-feed protection diode must be installed)Package contents:Step-down module × 1
