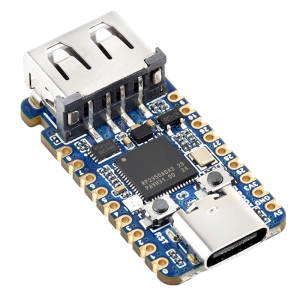

Aideepen | For Raspberry Pi Pico 2 RP2350 USB A Development Board RP2350A Waveshare RP2350-USB-A RP2350-USB-C

RP2350-USB-C / RP2350-USB-CM:1. Equipped with RP2350A dual core dual architecture chip, 150MHz main frequency, ARM/RISC-V architecture for free switching2. Stamp hole half hole mini board type, dual Type-C, supports bidirectional switching of power supply from USB host to slave3. Built in 520KB SRAM+2MB flash memory, equipped with 15 GPIO ports and SPI/I2C/UART/ADC/PIO peripherals4. Supports low-power sleep mode, drag and drop burning, and comes with on-chip temperature sensing precision monitoring chip5. Adapt to IoT terminals, DIY peripherals, industrial control, embedded teaching, and small automation equipment developmentCharacteristic parameters:Version: RP2350-USB-C PIO-USB Female Edition; RP2350-USB-CM PIO-USB Public Port VersionAdopting RP2350A microcontroller chipUnique dual core and dual architecture, equipped with dual core ARM Cortex-M33 processor and dual core Hazard3 RISC-V processor, with clock operating frequency up to 150MHz, supporting users to flexibly switch between the two architecturesBuilt in 520KB SRAM and 2MB on-chip FlashAdopting Type-C interface, there is no need to worry about forward and backward insertionSupport Type-C interface power supply (compatible with PD protocol)Stamp hole design, can be directly welded and integrated into the user's self-designed base plateUSB 1.1 host and slave device supportSupport low-power sleep and sleep modeCan be recognized as a large capacity storage device through USB for drag and drop download of programs15 GPIO pins of RP2350A lead out2 SPI, 2 I2C, 2 UART, 4 12 bit ADCs, and 14 controllable PWM channelsAccurate on-chip clock and timerBuilt in temperature sensor for real-time monitoring of chip temperature12 programmable I/O (PIO) state machines for custom peripheral supportRP2350-USB-A:1. Dual core dual architecture processor: Unique dual core, dual architecture, with a clock speed of 150MHz and strong performance.2. Large capacity storage: Built in 520KB SRAM and 2MB on-chip Flash to meet various needs.3. Flexible GPIO design: 15 multifunctional GPIO pins with strong scalability and flexible development.4. Convenient interface design: Adopting Type-C interface, it can be directly soldered and integrated, and the stamp hole design is convenient for embedded applications.5. Low power consumption and rich peripherals: Supports low-power mode, accelerated floating-point library, and 12 programmable PIO state machines.Product Features:Adopting the official independently designed RP2350A microcontroller chipUnique dual core and dual architecture, equipped with dual core ARM Cortex-M33 processor and dual core Hazard 3 RISC-V processor, with a clock operating frequency of up to 150MHzBuilt in 520KB SRAM and 2MB on-chip FlashAdopting Type-C interface, keeping up with the trend of the times, no need to worry about forward and backward insertionStamp hole design, can be directly welded and integrated into the user's self-designed base plateUSB 1.1 Host and Device SupportOnboard 1 USB expansion port, compatible with USB 2.0/1.1 transmissionSupport low-power sleep and sleep modeCan be recognized as a large capacity storage device through USB for drag and drop downloads15 GPIO pins of RP2350A lead out2 SPI, 2 I2C, 2 UART, 4 12 bit ADCs, and 14 controllable PWM channelsAccurate on-chip clock and timerBuilt in temperature sensorOn-chip accelerated floating-point library12 programmable I/O (PIO) state machines for custom peripheral supportMini size 33mm * 17.5mm
