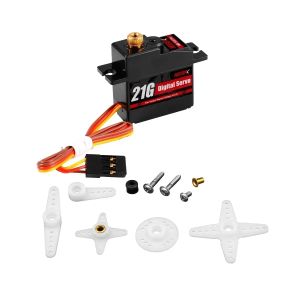

NEEBRC 8g 12g 21g 7KG 12KG 23KG Digital Servo Motor for RC Car Crawler Drift Fixed Wing Airplane Boat Parts MN WPL Wltoys Axial

NEEBRC 8g 12g 21g 7KG 12KG 23KG Digital Servo Motor for RC Car Crawler Drift Fixed Wing Airplane Boat Parts MN WPL Wltoys AxialFeatures: High performance digital standardLow noise and long service lifeSmall volume and large torqueSuit for RC car boat helicopter modelSpecifications: Item name: NEEBRC NB-S011M Quantity: 1pcsOperating Voltage : 4.8~6.0V DCMax. Torque : 12.1kgf.cmNo Load Speed : 4.8V≤0.16sec/60°; 6.0V≤0.14sec/60°Stall Current:4.8V ≦1900mA;6.0V≦2500mAConsumption Current* (No Load):4.8V ≦120mA;6.0V≦130mAMax. Operating Travel Angle:180° ±10° (500~2500 us)Dead Band Width: ≤ 1usMechanical Limit Angle: 360°Communication Interface: PWMMotor Type: Core motorCase Material: ABSGear Set Material : Metal gearHorn Gear Spline: 25T/Φ5.77Weight: 21gSize: 42.3 × 15.4 × 32.1mmLength of Connector cable: JR 250MM±5mm (exposed without plug)Item name: NEEBRC NB-S005 Quantity: 1pcsOperating Voltage : 4.8~6.0V DCMax. Torque : 4.8V≥1.10kgf·cm ; 6.0V≥1.40kgf·cmNo Load Speed : 4.8V≤0.14sec/60°; 6.0V≤0.12sec/60°Stall Current:4.8V≦680mA;6.0V≦780mAConsumption Current* (No Load):4.8V ≦130mA ;6.0V≦150mAMax. Operating Travel Angle:180°±10°(500~2500μs)Dead Band Width: ≤ 3usMechanical Limit Angle: 360°Communication Interface: PWMMotor Type: Coreless motorCase Material: ABSGear Set Material : Plastic gearHorn Gear Spline:28T/Φ3.90mmWeight: 7.2 gSize: 26.5 × 11.5 × 22.8mmLength of Connector cable: JR 200±5mm (exposed without plug)Item name:NEEBRC NB-S006M Quantity: 1pcsOperating Voltage : 4.8~6.0V DCMax. Torque : 4.8V≥1.30kgf·cm ; 6.0V≥1.80kgf.cmNo Load Speed : 4.8V≤0.13sec/60°; 6.0V≤0.11sec/60°Stall Current:4.8V≦700mA;6.0V≦800mAConsumption Current* (No Load):4.8V ≦150mA ;6.0V≦170mAMax. Operating Travel Angle:180°±10°(1000~2000μs)Dead Band Width: ≤ 3usMechanical Limit Angle: 360°Communication Interface: PWMMotor Type: Core motorCase Material: ABSGear Set Material : Metal gearHorn Gear Spline:40T/Φ4.85mmWeight: 13.5 gSize: 27.3 × 12 × 23mmLength of Connector cable: JR 250±5mm (exposed without plug) Item name: NEEBRC NB-S007MQuantity: 1pcsOperating Voltage : 4.8~6.0V DCMax. Torque : 9kgf·cm No Load Speed : 4.8V≤0.10sec/60°; 6.0V≤0.12sec/60°Stall Current:4.8V≦1500mA;6.0V≦1800mAConsumption Current* (No Load):4.8V ≦200mA ;6.0V≦210mAMax. Operating Travel Angle:180°±10°(1000~2000μs)Dead Band Width: ≤ 1usMechanical Limit Angle: 360°Communication Interface: PWMMotor Type: Core motorCase Material: ABSGear Set Material : Metal gearWeight: 20.7 gSize: 29.6 × 13.2 × 40mmLength of Connector cable: JR 250±5mm (exposed without plug)Item name: NB-S006BQuantity: 1pcsOperating Voltage : 4.8~6.0V DCMax. Torque : 4.8V≥1.30kgf·cm ; 6.0V≥1.50kgf·cmNo Load Speed : 4.8V≤0.13sec/60°; 6.0V≤0.11sec/60°Stall Current:4.8V≦700mA;6.0V≦800mAConsumption Current* (No Load):4.8V ≦150mA ;6.0V≦170mAMax. Operating Travel Angle:180°±10°(1000~2000μs)Dead Band Width: ≤ 3usMechanical Limit Angle: 360°Communication Interface: PWMMotor Type: Core motorCase Material: ABSGear Set Material : Semi-copper gearWeight: 13.5 gSize: 27.3 × 12 × 23mmLength of Connector cable: JR 250±5mm (exposed without plug)Item name: NEEBRC S007CQuantity: 1pcsOperating Voltage: 4.8~6V DCRated Voltage:6VRated Torque:≥1kgf·cmStandby Current:≤ 20mAConstant speed current* (No Load):≦80mANo Load Speed:≤0.12sec/60°Stall Current:≦1.3AStall Torque: ≥9kgf·cmDynamic Torque:≥5.8kgf·cmRotating Direction:CCW(500~2500us)Max. Operating Travel Angle:180°±10° (1000~2000μs)Remote Controller Angle: About 90 DegreeOperating Travel Angle:90° ±1°Mechanical Limit Angle:360°Case Material:Aluminium alloy(middle shell)/ABS(upper and lower shell)Gear Material: Metal GearHorn Gear Spline:Φ6.0x25TMotor Type:Core MotorCommunication Interface: PWMSize: 40× 13.2 × 29.6 mmLength of Connector cable: 300±10mm (exposed without plug)Weight:25 ± 2.0gItem name: NEEBRC NB-H015Quantity: 1pcsOperating Voltage : 6.0~7.4V DCMax. Torque : 23.4kgf·cmNo Load Speed : 6.0V≤0.18sec/60°; 7.4V≤0.15sec/60°Stall Current:6.0V ≦3600mA;7.4V≦4200mAConsumption Current* (No Load):6.0V ≦90mA;7.4V≦100mAMax. Operating Travel Angle:180° ±10° (500~2500 us)Dead Band Width: ≤ 5usMechanical Limit Angle: 360°Communication Interface: PWMMotor Type: Core motorCase Material: ABSGear Set Material : Metal gearWeight: 42.5gSize: 56 × 23.22 × 28.65mmLength of Connector cable: JR 270MM±5mm (exposed without plug)Package included:1 * Digital Servo(optional)1 * Servo Arm AccessoriesNote:1.Package only includes items listed in the product description, other accessories are not included.2.There may be slight color deviation caused by different display monitors, but the product design & style are consistent with pictures.3.Manual measurement exists error, please allow 1-3mm size tolerance, kindly confirm before placing order.4.Minor scratch or slight color difference is normal production trace, not quality defect.Service:1.If you meet any issues with your order, please don’t hesitate to message us. We will try our utmost to resolve everything for you.2.This item does not come with an official warranty. Should you receive defective goods, kindly reach out to us promptly and provide clear photos or videos of the product for troubleshooting.3.If you are happy with our products and service, we would highly appreciate your positive feedback to support our store.4.We sincerely hope that our products will bring happiness to your life! Happy shopping!
