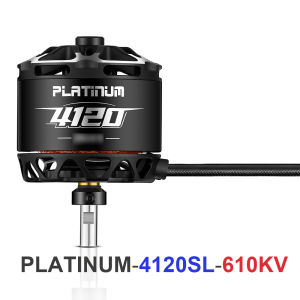

Hobbywing Platinum 4120 4125 4130 6S/12S 6mm Shaft Brushless Motor For RC Fixed-wing

Hobbywing Platinum 4120 4125 4130 6S/12S 6mm Shaft Brushless MotorModel: Platinum 4120SL 250KVMotor Size: Φ49.572.3mmStator Size: Φ40.620mmStator process: High standard silicon steel sheet,180℃ high temperature resistance paint-coatEnamelled wire: 200℃Props mounting dimensions: Φ15mm-3M3Motor mounting dimensions: Φ30mm-4M4Slot & Pole: 12N14PDynamic balance: ≤10mgBearing: 696ZZMotor axle diameter: Φ6mmIsolation test: 500V AC high voltage resistance testKV: 250Battery (LiPo): 12S LiPoNo-load current: 1.4A/44.4VMaximum current (Non-hermetic Ambient Temperature ≤ 25℃): 55.3A/30sMax power: 2452W/30sMax thrust: 7.69kgResistance: 64mΩWire Size: Enamelled Wire OutputWire length: 90mmWeight (With wire): 309gRecommended ESC: PLATINUM 130A V4 / PLATINUM 180A V5.1;Propeller: 12S: 15X6E,15X8E,16X6E,16X8E;Model: Platinum 4120SL 500KVMotor Size: Φ49.572.3mmStator Size: Φ40.620mmStator process: High standard silicon steel sheet,180℃ high temperature resistance paint-coatEnamelled wire: 200℃Props mounting dimensions: Φ15mm-3M3Motor mounting dimensions: Φ30mm-4M4Slot & Pole: 12N14PDynamic balance: ≤10mgBearing: 696ZZMotor axle diameter: Φ6mmIsolation test: 500V AC high voltage resistance testKV: 250Battery (LiPo): 6S LiPoNo-load current: 2.6A/22.2VMaximum current (Non-hermetic Ambient Temperature ≤ 25℃): 102.7A/42sMax power: 2276W/42sMax thrust: 7.41kgResistance: 17mΩWire Size: Enamelled Wire OutputWire length: 90mmWeight (With wire): 310gRecommended ESC: PLATINUM 120A V4 / PLATINUM 150A V5.1;Propeller: 6S: 15X6E,15X8E,16X6E,16X8E;Model: Platinum 4120SL 610KVMotor Size: Φ49.572.3mmStator Size: Φ40.620mmStator process: High standard silicon steel sheet,180℃ high temperature resistance paint-coatEnamelled wire: 200℃Props mounting dimensions: Φ15mm-3M3Motor mounting dimensions: Φ30mm-4M4Slot & Pole: 12N14PDynamic balance: ≤10mgBearing: 696ZZMotor axle diameter: Φ6mmIsolation test: 500V AC high voltage resistance testKV: 610Battery (LiPo): 6S LiPoNo-load current: 3.7A/22.2VMaximum current (Non-hermetic Ambient Temperature ≤ 25℃): 121.9A/59sMax power: 2252W/59sMax thrust: 7.21kgResistance: 12mΩWire Size: Enamelled Wire OutputWire length: 90mmWeight (With wire): 317gRecommended ESC: PLATINUM 120A V4 / PLATINUM 150A V5.1;Propeller: 5S:15X8E,16X8E; 6S:14X6E,15X6E;Model: Platinum 4125SL 250KVMotor Size: Φ49.577.3mmStator Size: Φ40.625mmStator process: High standard silicon steel sheet,180℃ high temperature resistance paint-coatEnamelled wire: 200℃Props mounting dimensions: Φ15mm-3M3Motor mounting dimensions: Φ30mm-4M4Slot & Pole: 12N14PDynamic balance: ≤10mgBearing: 696ZZMotor axle diameter: Φ6mmIsolation test: 500V AC high voltage resistance testKV: 250Battery (LiPo): 12S LiPoNo-load current: 1.5A/44.4VMaximum current (Non-hermetic Ambient Temperature ≤ 25℃): 60.4A/49sMax power: 2681W/49sMax thrust: 8.25kgResistance: 47mΩWire Size: Enamelled Wire OutputWire length: 90mmWeight (With wire): 363gRecommended ESC: PLATINUM 130A V4 / PLATINUM 180A V5.1;Propeller: 12S:15X6E,15X8E,16X6E,16X8E;Model: Platinum 4125SL 450KVMotor Size: Φ49.577.3mmStator Size: Φ40.625mmStator process: High standard silicon steel sheet,180℃ high temperature resistance paint-coatEnamelled wire: 200℃Props mounting dimensions: Φ15mm-3M3Motor mounting dimensions: Φ30mm-4M4Slot & Pole: 12N14PDynamic balance: ≤10mgBearing: 696ZZMotor axle diameter: Φ6mmIsolation test: 500V AC high voltage resistance testKV: 450Battery (LiPo): 6S LiPoNo-load current: 2.6A/22.2VMaximum current (Non-hermetic Ambient Temperature ≤ 25℃): 92.8A/1min23sMax power: 2059W/1min23sMax thrust: 7.47kgResistance: 15.5mΩWire Size: Enamelled Wire OutputWire length: 90mmWeight (With wire): 362gRecommended ESC: PLATINUM 120A V4 / PLATINUM 150A V5.1;Propeller: 6S:15X8E,16X8E,16X10E,17X8E;Model: Platinum 4125SL 580KVMotor Size: Φ49.577.3mmStator Size: Φ40.625mmStator process: High standard silicon steel sheet,180℃ high temperature resistance paint-coatEnamelled wire: 200℃Props mounting dimensions: Φ15mm-3M3Motor mounting dimensions: Φ30mm-4M4Slot & Pole: 12N14PDynamic balance: ≤10mgBearing: 696ZZMotor axle diameter: Φ6mmIsolation test: 500V AC high voltage resistance testKV: 580Battery (LiPo): 6S LiPoNo-load current: 3.9A/22.2VMaximum current (Non-hermetic Ambient Temperature ≤ 25℃): 119.7A/1min17sMax power: 2289W/1min17sMax thrust: 7.35kgResistance: 9.5mΩWire Size: Enamelled Wire OutputWire length: 90mmWeight (With wire): 370gRecommended ESC: PLATINUM 120A V4 / PLATINUM 150A V5.1;Propeller: 5S:15X8E,16X8E; 6S:14X6E,14X7E,15x6E;Model: Platinum 4130SL 230KVMotor Size: Φ49.582.3mmStator Size: Φ40.630mmStator process: High standard silicon steel sheet,180℃ high temperature resistance paint-coatEnamelled wire: 200℃Props mounting dimensions: Φ15mm-3M3Motor mounting dimensions: Φ30mm-4M4Slot & Pole: 12N14PDynamic balance: ≤10mgBearing: 696ZZMotor axle diameter: Φ6mmIsolation test: 500V AC high voltage resistance testKV: 230Battery (LiPo): 12S LiPoNo-load current: 1.4A/44.4VMaximum current (Non-hermetic Ambient Temperature ≤ 25℃): 60.4A/1min2sMax power: 2678W/1min2sMax thrust: 9.06kgResistance: 43mΩWire Size: Enamelled Wire OutputWire length: 90mmWeight (With wire): 412gRecommended ESC: PLATINUM 130A V4 / PLATINUM 180A V5.1;Propeller: 12S: 16X6E,16X8E,17X6E,17X8E;Model: Platinum 4130SL 420KVMotor Size: Φ49.582.3mmStator Size: Φ40.630mmStator process: High standard silicon steel sheet,180℃ high temperature resistance paint-coatEnamelled wire: 200℃Props mounting dimensions: Φ15mm-3M3Motor mounting dimensions: Φ30mm-4M4Slot & Pole: 12N14PDynamic balance: ≤10mgBearing: 696ZZMotor axle diameter: Φ6mmIsolation test: 500V AC high voltage resistance testKV: 420Battery (LiPo): 6S LiPoNo-load current: 2.4A/22.2VMaximum current (Non-hermetic Ambient Temperature ≤ 25℃): 107.6A/1min4sMax power: 2384W/1min4sMax thrust: 8.73kgResistance: 14mΩWire Size: Enamelled Wire OutputWire length: 90mmWeight (With wire): 420gRecommended ESC: PLATINUM 120A V4 / PLATINUM 150A V5.1;Propeller: 6S:16X8E,16X10E,17X8E,18X8E;Model: Platinum 4130SL 490KVMotor Size: Φ49.582.3mmStator Size: Φ40.630mmStator process: High standard silicon steel sheet,180℃ high temperature resistance paint-coatEnamelled wire: 200℃Props mounting dimensions: Φ15mm-3M3Motor mounting dimensions: Φ30mm-4M4Slot & Pole: 12N14PDynamic balance: ≤10mgBearing: 696ZZMotor axle diameter: Φ6mmIsolation test: 500V AC high voltage resistance testKV: 490Battery (LiPo): 6S LiPoNo-load current: 2.4A/22.2VMaximum current (Non-hermetic Ambient Temperature ≤ 25℃): 129.3A/55sMax power: 2867W/55sMax thrust: 9.12kgResistance: 10.6mΩWire Size: Enamelled Wire OutputWire length: 90mmWeight (With wire): 418gRecommended ESC: PLATINUM 120A V4 / PLATINUM 150A V5.1;Propeller: 6S:15X8E,16X6E,16X8E,17X8E;
