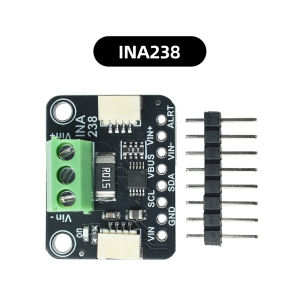

diymore | Ina228/ina237/ina237 Current/voltage Monitor Power Monitoring Module Power 2.7v-5.5v With STEMMA QT Qwiic Interface

Product Parameters:Style 1:INA228 high-precision current/power monitoring module 20 bit ADC current/voltage monitor compatible with STEMMA QT/Qwiic interfacePerformance characteristics:1. Qwiic plug and play, solder free, 20 bit ADC high-precision cumulative power2. Compatible with 0-85V wide voltage bus, accurate detection of ± 20A high current3. The current gain error is only ± 0.25%, and the power consumption monitoring data is reliable4.2.7-5.5V wide power supply, I2C address can be customized and configured5. Complete open-source driver matching, suitable for photovoltaic industrial control power monitoringBasic Parameters:Current measurement: ± 20A (maximum, depending on shunt resistance)Voltage measurement: 0V~85VADC resolution: 20 bitsCurrent accuracy: ± 0.25% (gain error, maximum value)Supply voltage: 2.7V~5.5VInterface: STEMMA QT/Qwiic (I2C address configurable)Module size: 25.4mmx20.3mmx10mmStyle 2:INA237 85V 10A 16 Bit current/power monitoring module compatible with STEMMA QT/Qwiic interfacePerformance characteristics:Qwiic solder free plug and play, high side synchronous voltage, current, and power measurementEquipped with a 16 bit ADC, it can automatically accumulate electrical energy and charge dataCompatible with high voltage bus from 0 to 85V, with ± 20A wide range current detectionCurrent gain error as low as ± 0.5%, stable power supply of 2.7-5.5VI2C address can be modified, compatible with open-source drivers for multi scenario monitoringBasic ParametersCurrent measurement: ± 20A (maximum, depending on shunt resistance)Voltage measurement: 0V~85VADC resolution: 16 bitsCurrent accuracy: ± 0.5% (gain error, maximum value)Supply voltage: 2.7V~5.5VInterface: STEMMA QT/Qwiic (I2C address configurable)Module size: 25.4mmx20.3mmx10mmStyle 3:INA238 high-precision current/power monitoring module DC current voltage power monitor compatible with STEMMA QT/Qwiic interfacePerformance characteristics:1. Qwiic interface solder free plug and play, easy to complete high side electrical parameter detection2. 20 bit Δ - ∑ ultra-high precision ADC, supporting electric energy and charge accumulation calculation3. Compatible with 0-85V high-voltage bus, with a maximum measurable ± 20A circuit current4. The current gain error is only ± 0.25%, and the stable power supply is between 2.7-5.5V5. The I2C address can be customized, and the open-source driver is compatible with various energy consumption monitoringBasic Parameters:Current measurement: ± 20A (maximum, depending on shunt resistance)Voltage measurement: 0V~85VADC resolution: 20 bitsCurrent accuracy: ± 0.25% (gain error, maximum value)Supply voltage: 2.7V~5.5VInterface: STEMMA QT/Qwiic (I2C address configurable)Module size: 25.4mmx20.3mmx10mmMain purpose:Battery Management System (BMS)Server/Data Center Power MonitoringEnergy metering for solar energy systemsPower consumption analysis of industrial equipmentProduct List:1X module1X needle arrangement
