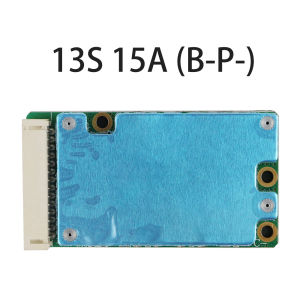

BMS 13S 48V 15A 20A 18650 Charge PCB Lithium BMS Battery Protection Board Common Port/Separate Port For Electric Vehicle Bike
Product Features:Exquisite craftsmanship, stable heat dissipationOvervoltage protection, over discharge protectionIntegrated solution, charging protectionShort circuit protection, overcurrent protectionUsing a single integrated circuit for more stable performance, with wire breakage protection and temperature protection functionProduct Parameters:Product Name: 13 series 48V lithium battery protection boardType: Three element/13 string/48V/15A/20AWiring method: same port, split portContinuous working current: 15A/20AOverdischarge protection voltage: 2.7V ± 0.05VOverdischarge recovery voltage: 3.0V ± 0.05VContinuous operating current: 4MOS=15A, 6MOS=20AInstantaneous protection current: 4MOS=65A, 6MOS=80AOvercurrent recovery conditions: charging recovery or load disconnectionShort circuit recovery conditions: charging recovery or load disconnectionOvercharge protection voltage: 4.25V ± 0.015VOvercharge recovery voltage: 4.15V ± 0.015VContinuous charging current: 4MOS=15A, 6MOS=20ACharging equalization voltage: noneCharging balance current: noneCharger voltage: 56V (recommended)Two activation methods for the first PACK（1） Short circuit the B - and C-wires once is sufficient（2） Or it can be activated by chargingTwo activation methods for the first PACK（1） Short circuit the B - and P-wires once is sufficient（2） Or it can be activated by chargingCharging over temperature: -5 ℃ to 50 ℃ (default shipment without temperature control)Discharge over temperature: -30 ℃ to 70 ℃ (default shipment without temperature control)Working power consumption: ≤ 40uAMain circuit conduction internal resistance: ≤ 15mS ΩTemperature range: -40 to+80 ℃Wire breakage protection: availableSame port wiring: B - connected to the negative terminal of the battery, C - connected to the negative terminal of the charge and discharge, P - not connectedSplit connection: B-connected to battery negative pole, C-connected to charging negative pole, P-connected to discharging negative poleCable size: 2.0mm spacing/14 wires/40cm lengthProduct appearance size: 63 * 34 * 7MMProduct List:1X protection board1 X-ray
