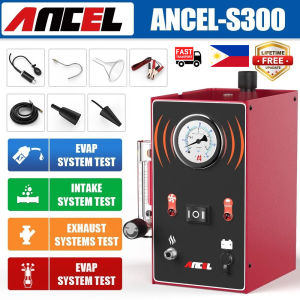

ANCEL S300 12V Car Leak Detector Turbo with Pump EVAP Pipe Leak Locator Generator Diagnostic Tool for Car / Motorcycle

The difference of S200 and S300:Ancel S300 supports multi-system testing, especially EVAP systemEVAP System TestIntake System TestExhaust Systems TestCrankcase system testCar Sealing TestFuel Tank System TestTurbo System TestVarious Pipe Fittings Test2 kinds of modes: AIR model+Smoke modeAir mode :First, use the air mode to directly measure the leak, and judge whether there is a leak by the pressure gauge value. If it is less than 0.5bar, it will inevitably leak. If it reaches 0.8bar and above, the pipeline tightness is very good.Then there is no need to waste baby oilSMOKE MODE:After the air mode determines that there is a leak, use the smoke mode to find the leak.how to use Ancel s300?Step1: Fill in 20ml test oil (baby oil) to the detectorStep2: Disconnect the pipe that needs to be connect with the detectorStep3: Connect detector with DC12V battery,device starts to workStep4: The pipe will be filled with smoke,check the leak pointsHow to judge leakage- through the pressure gauge?NO Leak: When the value of the pressure gauge remains unchanged and the flow meter will read zero (ball at bottom of scale), it means that there is no leakage in the system.Small Leak: When the value of the pressure gauge drops and the ball in the flow meter slowly fall to the bottom of the scale, it indicates a small leak in the system.Massive Leak: When the value of the pressure gauge reaches zero and the flow meter ball never falls to the bottom of the scale, it indicates a large leak in the system.Adjustable Smoke Output Help To Pinpoint Leaks QuickAdopt The Latest 5th Generation TechnologyOverheat & Anti-frost ProtectionOverheat ProtectionWhen the temperature of the device exceeds 75℃, power protection will be intelligently activated to turn it off.Anti-frost ProtectionThe device can also work normally at -20℃.SpecificationPower source:12V Fully Charged vehicle batteryCurrent:6AFlow rate: Pressure output:0.8-1.0 bar (0.8-14.5psi)
