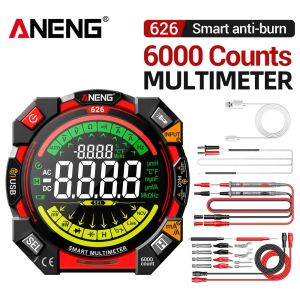

ANENG | ANENG 626 Digital Multimeter 6000 Counts AC DC Voltage Current Resistance NCV USB Rechargeable Data Hold Electrician Repair Tool

ANENG 626 Digital Multimeter 6000 Counts AC DC Voltage Current Resistance NCV USB Rechargeable Data Hold Electrician Repair Tool Product OverviewANENG 626 is a 6000-count True RMS digital multimeter built-in rechargeable lithium battery, covering complete measurement functions including voltage, current, resistance, capacitance, frequency, duty cycle and temperature test. It is equipped with practical maintenance functions such as live/neutral wire identification, NCV non-contact induction, VA reverse color screen, built-in flashlight and data hold. Adopt lightweight ABS housing, support USB direct charging, widely applied for electrician circuit maintenance, electronic equipment debugging, household wiring inspection and vehicle circuit detection. All parameters are for reference only, the actual measurement of the specific equipment shall prevail.626 Parameter Information Table Function Range Resolution Accuracy DC voltage 0.3mV~600V 0.01mV~0.1V ±0.6% reading + 5 words AC voltage 3mV~600V 0.01mV~0.1V ±0.8% reading + 5 words DC current 3mA~10A 0.1mA~0.01A ±1.0% reading + 8 words AC current 3mA~10A 0.1mA~0.01A ±1.0% reading + 8 words Resistance 0Ω~60MΩ 0.1Ω~0.01MΩ ±0.8% reading + 5 words Capacitor 0nF~20mF 0.001nF~0.01mF ±2.5% reading + 20 words Hz hertz 10Hz~7MHz 0.01Hz~0.01MHz ±0.2% reading + 5 words % Duty cycle 10%~90% 0.1 ±2.6% reading + 7 words Temperature °C °F -40°C~1000°C-40°F~1832°F 1°C1°F ±(1.0% + 3) reading Naught FireWire ✔ Flashlight lighting ✔ NCV voltage induction ✔ USB lithium battery charging ✔ On/Off ✔ Battery type 3.7V 1000mA lithium battery Diode ✔ Automatic shutdown Automatically shut down if there is no operation after 15 minutes VA reverse display ✔ Maximum count 6000 Count Data retention ✔ Material ABS Low power prompt ✔ Weight 173g Core product advantages●6000 bit high-definition digital counting, segmented gear resolution, clear reading of small electrical parameters, stable and reliable measurement accuracy of voltage, current, and electronic components●USB lithium direct charging design, built-in 3.7V 1000mAh lithium battery, Type-C charging cycle for repeated use, no need to frequently purchase and replace disposable dry batteries, long-term outdoor inspections to reduce consumable costs● Full range measurement gear coverage: AC/DC voltage, 3mA~10A AC/DC high/low current, 0~60M Ω super large resistor, 0~20mF large capacity capacitor, 10Hz~7MHz frequency, 10%~90% duty cycle, matched with wide range thermocouple temperature measurement, one device replaces multimeter+thermometer+frequency meter● Dual function safety detection support: NCV non-contact voltage induction, which can identify live wires through the outer layer of the cable; Intelligent differentiation of neutral and live wires, quick identification of line attributes for home wiring and socket maintenance, and avoidance of electric shock risks●Electronic component and circuit fault detection: diode forward voltage drop test, circuit on/off buzzer alarm, quickly locate broken wires, short circuits, and component damage faults● Full set of humanized night maintenance configuration: VA anti color high-definition display screen, non reflective in strong light environment; The body comes with an LED flashlight, and the basement, ceiling trunking, and distribution box are equipped with lighting without light● Practical power-saving auxiliary function: data lock HOLD retains measurement values, low battery pop-up reminder, 15 minute idle automatic shutdown, reduces ineffective battery consumption, extends single charge battery life●ABS integrated wear-resistant insulated body, with a balanced weight of 173g and an ergonomic design. It is easy to hold and maintain the wrist for a long time without feeling sore. The tool kit and tooling pockets are easily storedPackage Included: according to the choice
