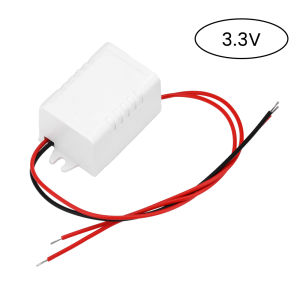

Aideepen | AC-DC Switching Power Supply Module AC 100-264V to DC 3.3V 5V 12V 24V Buck Converter 3W LED Isolated Voltage Stabilized Module

Features:1. Using high quality materials, quality is guaranteed2. Wide range input voltage range, more convenient to use3. Overload, short circuit, over-temperature protection function4. Small size, high efficiency, stable performance5. Simple operation, wide range of applications, suitable for a variety of industrial DIY occasionsParameter:Input voltage range: AC100~264VInput current: Frequency range: 47~63HzEfficiency: 75%~76Output voltage: 3.3V/5V/12V/24VRated current: 500mA/250mA/100mARipple: ± 1%Output Accuracy: ±1%Voltage Adjustment Rate: ±1%Load adjustment rate: ± 1%Rated power: 3WOutput adjustable range: non-adjustableLeakage current: Over-power protection: 150~170%Rated power, fault removal automatic recoveryOver-voltage protection: VH1: > 50%DC short-circuit protection: power intermittent playing apart, exclude short-circuit power recoveryWarm tips:1. All parameters in the rated voltage 220VAC input, rated load environment 25 ℃, humidity 70% of the conditions of measurement2. Precision: including setting error, voltage adjustment rate, load adjustment rate3. Ripple test: connect the power supply and load with 30cm long stranded wire, and 0.1uF and 47uF capacitors at the load side, measured by 20MH oscilloscope at the load side.4. Voltage regulation rate: under rated load conditions, the input voltage is measured from low to high.5. Load adjustment ratio: measured from 0% load to 100% load variation of the output under test.6. Each channel can output the maximum current, but the sum of the total load can not exceed the maximum output powerPackage include:Switching power supply module *1
