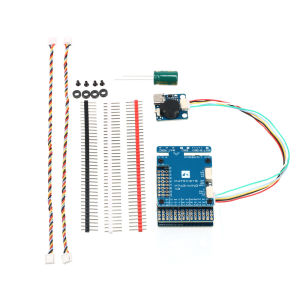

MATEK H743 WING V3 Flight Controller STM32H743VIT6 Dual IMU Baro OSD SD Slot for INAV ArduPilot RC FPV Fixed Wing Plane MATEKSYS

FC SpecificationsMCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB FlashIMU: MPU6000 (SPI1) & ICM42605 (SPI4)Baro: Infineon DPS310 (I2C2)OSD: AT7456E (SPI2)Blackbox: MicroSD card slot (SDIO)7x Uarts (1,2,3,4,6,7,8) with built-in inversion.13x PWM outputs(including “LED” pad)2x I2C1x CAN6x ADC (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2)3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)1x SPI3 breakoutUSB/Beep Extender with Type-C(USB2.0)Dual Camera Inputs switch5V/9V(12V) for Camera/VTX power switchHigh-precision Current Sense (90A continuous, 220A peak)Battery Voltage Sensor: 1K:10K (Scale 1100 in INAV,  BATT_VOLT_MULT 11.0 in ArduPilot)ADC VB2 voltage divider: 1K:20KADC AirSpeed voltage divider: 20K:20KStatic power 160mA@5VFC FirmwareArduPilot(ChiBiOS): MATEKH743INAV: MATEKH743PDBInput voltage range: 8~36V (3~8S LiPo) w/TVS protection2x ESC power padsCurrent Senor: 220A,  3.3V ADC  (Scale 150 in INAV,  66.7 A/V in ArduPilot)Sense resistor: 90A continuous, 220A peak.BEC 5V outputDesigned for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeedOutput 5.15  +/- 0.1V DCContinuous current 2 Amps,  3A PeakBEC 9V /12V outputDesigned for Video Transmitter, Camera, Gimbal ect.Continuous current 2 Amps,  3A Peak12V option with Jumper padBEC Vx outputDesigned for ServosVoltage adjustable, 5V Default, 6V or 7.2V via jumperContinuous current 8 Amps,  10A PeakBEC 3.3V outputLinear RegulatorContinuous current: 200mAPhysicalMounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mmDimensions: 54 x 36 x 13 mmWeight: 30g with USB extenderH743-WING-V3  3d step fileIncluding1x H743-WING1x USB(Type-C)/Beep (Passive buzzer) Extender1x 20cm JST-SH-6P to JST-SH-6P cable for USB extender.2x 20cm JST-GH-4P to JST-GH-4P cable for CAN & I2C port1x Rubycon ZLH 35V 470uF capacitorDupont 2.54 pins  (Board is shipped unsoldered)
