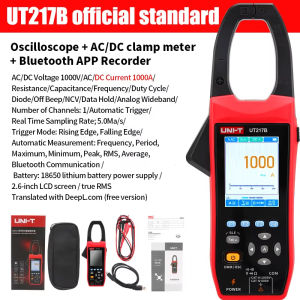

UNI-T Clamp Meter Oscilloscope UT217A UT217B 600A/1000A AC DC Current Clamp Digital Multimeter NCV Bluetooth Function Analog Bandwidth Waveform Frequency Measurement

HighlightsThe UNI-T UT217A/UT217B Clamp Meter Oscilloscope combines a high-precision multimeter with oscilloscope functionality.Measures up to 600A (UT217A) or 1000A (UT217B) AC/DC current and 1000V voltage with 1MHz voltage bandwidth.Features true RMS measurement, inrush current detection, and Bluetooth connectivity for real-time data transfer to mobile apps.Equipped with a 2.8-inch HD LCD, dual display themes, and a narrow 31mm/38mm jaw for tight spaces.Ideal for power systems, industrial, and automotive diagnostics with built-in rechargeable battery and Type-C charging.600A (UT217A)/ 1000A (UT217B) AC/DC clamp meter+oscilloscope function in oneBandwidth: voltage 1MHz, current 1KHz20000 count true effective value automatic range clamp meterOscilloscope function: can simultaneously measure current and voltage waveforms, providing more comprehensive analysisSupports Bluetooth connection to mobile apps: real-time transmission, analysis, and storage of measurement dataInrush current measurement (AC current only)2.8-inch high-definition LCD display screen with full button operationDual theme display, adaptable to different lighting environments, ensuring clearer display effects31mm (UT217A)/ 38mm (UT217B) narrow edge slender opening designType-C charging, built-in 3.7V 2600mAh rechargeable lithium battery, long-lasting enduranceProduct details ofUT217A UT217B oscilloscope clamp meterThe UT217 series oscilloscope clamp meter is a high-performance measurement tool integrating oscilloscope functionality with a clamp multimeter. The UT217A measures AC/DC voltages up to 1000V and AC/DC currents up to 600A, while the UT217B measures AC/DC voltages up to 1000V and AC/DC currents up to 1000A. The oscilloscope function of this clamp meter enables observation and analysis of electrical signal waveforms, amplitudes, and frequencies, making it an ideal choice for power system inspection and maintenance tasks. It is primarily applied in the power, industrial, manufacturing, new energy, and automotive sectors.Clamp Meter functional parametersModelUT217AUT217BResolutionAccuracyDC Voltage20.000mV20.000mV0.001mV± (0.1%+20dig)200.00mV200.00mV0.01mV± (0.1%+6dig)2.0000V2.0000V0.0001V± (0.1%+5dig)20.000V20.000V0.001V200.00V200.00V0.01V1000.0V1000.0V0.1V± (0.15%+5dig)AC Voltage200.00mV200.00mV0.01mVVRMS Freq range: 40Hz-1000Hz± (0.6%+10dig)2.0000V2.0000V0.0001V20.000V20.000V0.001V200.00V200.00V0.01mV1000.0V1000.0V0.1V± (0.8%+10dig)DC Current20.00A20.00A0.01A± (0.2%+10dig)200.0A200.0A0.1A± (0.2%+5dig)600.0A1000.0A0.1AAC Current20.00A20.00A0.01AVRMS Freq range: 40Hz-1000Hz±(0.3%+10dig)200.0A200.0A0.1A± (0.25%+5dig)600.0A1000.0A0.1AInrush Current20.00A20.00A0.01AVRMS Freq range: 40Hz-1000Hz±(10.0%+10dig)200.0A200.0A0.1A600.0A1000.0A0.1AResistance200.00Ω200.00Ω0.01Ω±(0.8%+10dig)2.0000kΩ2.0000kΩ0.0001kΩ±(0.3%+10dig)20.000kΩ20.000kΩ0.001kΩ200.00kΩ200.00kΩ0.01kΩ2.0000MΩ2.0000MΩ0.0001MΩ20.0000MΩ20.0000MΩ0.001MΩ±(0.5%+5dig)100.000MΩ100.000MΩ0.01M±(5.0%+10dig)Capacitance2.000nF2.000nF0.001nF±(5.0%+10dig)20.00nF20.00nF0.01nF±(3.0%+10dig)200.0nF200.0nF0.1nF2.000μF2.000μF0.001μF20.00μF20.00μF0.01μF200.0μF200.0μF0.1μF2.000mF2.000mF0.001mF20.00mF20.00mF0.01mFFrequency200.00Hz200.00Hz0.01Hz±(0.1%+5dig)2.0000kHz2.0000kHz0.0001kHz20.000kHz20.000kHz0.001kHz200.00kHz200.00kHz0.01kHz2.0000MHz2.0000MHz0.0001MHz20.000MHz20.000MHz0.001MHzDuty Cycle0.1%-99.9%(Typical:Vrms=1 V,f=100Hz)0.1%-99.9%(Typical:Vrms=1 V,f=100Hz)0.10%±(1.2%+3dig)0.1%-99.9%0.1%-99.9%±(2.5%+10dig)Diode3.0000V3.0000V0.0001VOpen circuit voltage 3.2VOn-Off0~200.0Ω0~200.0Ω0.1ΩBuzzer limit 50Q; The measurement valueis displayed from 00 to 200.0Ω,and "OL" is displayed if the value exceeds.NCVSupportOscilloscope functional parametersCharacteristicsInstructionAnalog bandwidthVoltage: 1MHz Current: 1KHzSample modeReal-time sampleReal-time sampling rate5.0 MSa/sChannel1Input impedance≥10MΩMaximum input voltageMaximum peak voltage 1000VMaximum sample currentUT217AMaximum peak current 600.0AUT217BMaximum peak current 1000AScan speed2.5 us/div - 10 s/divTime base accuracy±(0.01 % + 0.1 div)Sensitivity30 mV/div - 500 V/divDisplacement range±3 gridSensitivity accuracy±(5 % + 0.2 div)Measurement valueRms, Freq, Max, Min, PK-PK,AvgTrigger modeAutoTrigger typeRise FallBluetooth communicationA smart phone can be used to view the measurement data of the multimeter on themobile phone side, perform remote control, display data charts, and store themeasurement data in CSV format.Automatic shutdownWhen all functions are not used, the meter will automatically shut down in about10 minutes.(the default is 10 minutes of automatic shutdown when starting, which can be canceled)Display modeDMM or OSCTrue RMS√Return zero measurement√Input protection√Digital hold√PowerSingle section 18650 3.7V 2600mAhLow battery displayWhen the power is low, there will be a low power window, and wait for a period oftime to shut down automatically.Backlight function√LCD Size2.8 inchJaw SizeUT217A31mmUT217B38mmWeightUT217AApproximately 0.34kgUT217BApproximately 0.35kgDimensionUT217A233mm(L)x 94.5mm(W)x 37.8mm(D)UT217B248mm(L)x 94.5mm(W)x 37.8mm(D)
