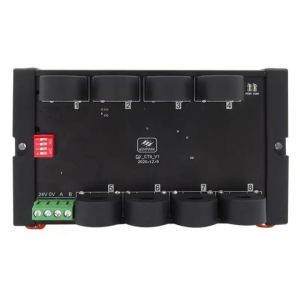

btnx 8 Channel Current Transformer AC 0-50A Isolated RS485 Modbus-RTU Communication 0.1A Accuracy Current Acquisition Module M2Y9R
Description:Eight channels of simultaneous sampling are independent of each otherDefault Modbus-RTU standard protocol, RS485 communication outputMeasure true RMS value, DIP switch settingSupport PLC, configuration software, touch screen, wireless DTU module, serial communication, etc.Specification:Rated voltage: DC24V, maximum allowable ripple voltage 5%, maximum power consumption 100mAWorking environment: ambient temperature, -20℃~50℃; relative humidity, 35%~85% (non-condensing)Range: 0~50AAccuracy: 0.1ABasic error: ±1%FSOutput interface: RS485 (Modbus-RTU) standard protocolDefault communication parameters: station number 30, baud rate 9600bps, even parity, 8 data bits, 1 stop bitAppearance size: 1459040mmInstallation method: rail installation or screw installation
btnx
